AIWA Receiver Bluetooth FM DAB

AIWA nya kraftpaket
EN FM och DAB receiver med 2 x 100 watt RMS uteffekt.

Kort om denna produkt.
Bluetooth v 5.0
DAB
FM RDS
USB anslutning
SD kort


Teknisk information
Output power = 200W = 2x 100W RMS @4 Ohms, 0,1% THD.
Phono Input with Built-In Pre-Amp and RIAA EQ, with Phono Ground (GND) Terminal
Anslutningar

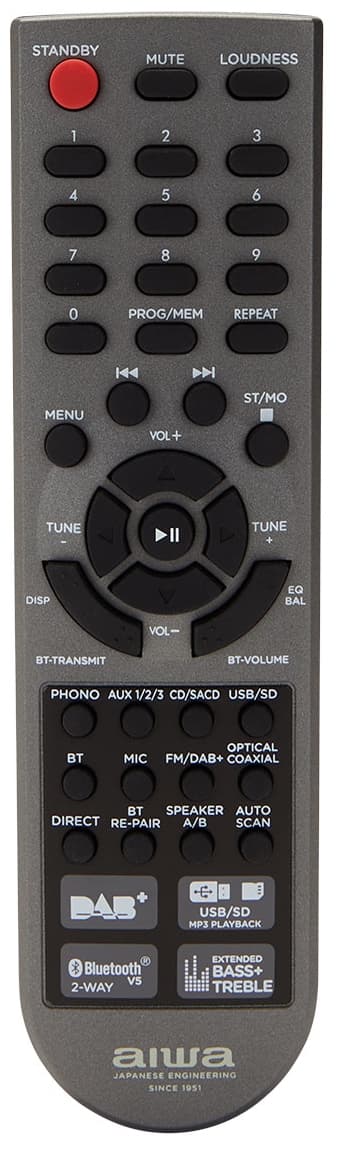

Full Function Remote Controller in Metallic Finishing with Silicone Rubber Buttons,
including MP3/BT Playback controls.
6.35mm (1/4 inch) Stereo Headphone-Output Jack built-in.
6.35mm (1/4 inch) Microphone-Input Jack built-in.
Gold Plated A and B Speaker Terminals. Impedance= A/B speaker : 4-8 ohm,A+B
speaker : 8-16 ohm.
High Quality FET Power Amplifier circuit (S/N for AUX-In > 100dB, S/N for USB+SD/MP3
and Phono-In >83dB)
Wolfson 192 kHz/24-bit D/A Converter.
Treble (10KHz) & Bass (100Hz) independant adjustments +/- 10dB.
Frequency Response 20Hz - 20KHz +/- 0.5dB.
Channel separation >80dB@1kHz.
7 Analog audio inputs : PHONO (MM), CD/SACD, AUX-IN 1, AUX-IN 2, AUX-IN 3, MIC,
BT.
Rec-Out/Line-Out Analog Stereo Output Included.
LOUDNESS Control button for Audio EQ Enhancement at Night-time.
DAB+ Digital Audio Broadcast Receiver Built-In.
FM-RDS Radio Tuner Built-In.
USB-port + SD-Card slot (in front panel) for MP3 playback, up to 128GB memory readable,
with Scrolling id3-Tag song info on display.
ANTI-VIBRATION Riser Feet with Rubber (Silicone) Pads
Digital Rotary Aluminium Controller for Volume/Treble/Bass/Balance/BT-Volume Control
with digital readout.
Bluetooth v5.0 Receiver Built-In with Scrolling Media Info on dot-matrix display and 10M
wireless range.
Bluetooth v5.0 Transmitter to Stream Wireless Audio to any Bluetooth Compatible Mobile
Device and 10M wireless range
Fully Alphanumeric 16 char x 2 lines dot matrix display with White-LED backlighting and
Tinted Prism Lens
Anodized Aluminium front panel (Brushed Hairline Finishing).
White LED Ambient Light Bar (3D PRISM type) under the display on frontal panel.
2 Digital audio inputs: Optical & Coaxial.
Direct button for EQ Bypass (Direct Power Amplifier Output).
QUAD Speaker Connections (with Selector for 2x Stereo Speakers A and B).
Built In DUAL Power Supplies ( SMPS for Standby Mode, Toroidal Transformer for Main
Operation).
Hardware ON/OFF Toggle Master Power Switch included.
Extra Long AC-Power Cord : 2M Length.
