Ethernet WAN

Ja

DSL WAN

Nej

SIM-kortplats

Nej

Kompatibelt med 3G/4G USB-modem

Nej

Kommunikationsstandarder

IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11k, IEEE 802.11n, IEEE 802.11r, IEEE 802.11s, IEEE 802.11v, IEEE 802.3, IEEE 802.3az, IEEE 802.3u

Nätverksansluten (Ethernet)

Ja

Datahastighet för Ethernet-LAN

10,100 Mbit/s

Full duplex

Ja

Auto MDI / MDI-X

Ja

Webbaserad adminstraion

Ja

Stöd för garanterad tjänstekvalitet (QoS)

Ja

Återställningsknapp

Ja

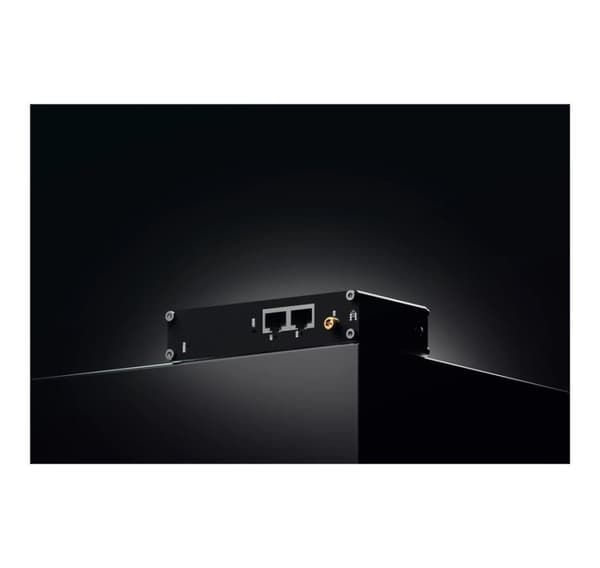

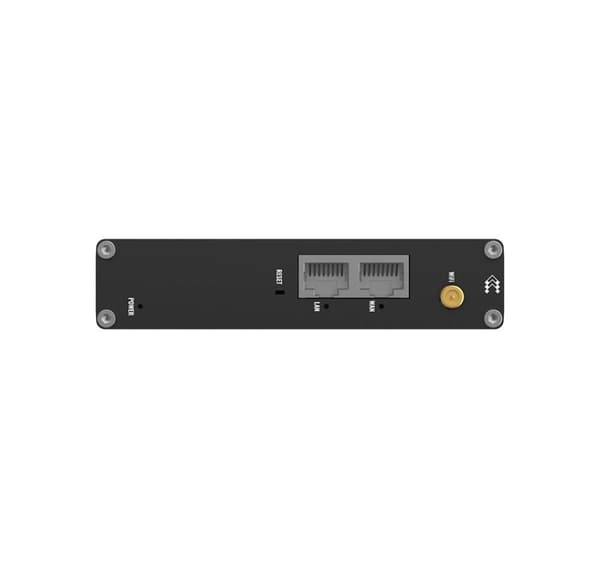

Antal LAN (RJ-45) anslutningar

2

DHCP-klient

Ja

DHCP-server

Ja

Kryptering/säkerhet

AES-CCMP, EAP-TLS, OWE, TKIP, WPA-EAP, WPA-PSK, WPA2-Enterprise-PEAP, WPA2-PSK, WPA3-EAP, WPA3-SAE

Åtkomstkontrollista (ACL)

Ja

VPN-stöd

OpenVPN Multiple clients and a server can run simultaneously, 27 encryption methods OpenVPN Encryption DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 IPsec IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) GRE GRE tunnel, GRE tunnel over IPsec support PPTP, L2TP Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support Stunnel Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code DMVPN Method of building scalable IPsec VPNs SSTP SSTP client instance support ZeroTier ZeroTier VPN client support WireGuard WireGuard VPN client and server support Tinc Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.

Inbyggd processor

Ja

Processortillverkare

MediaTek

Processorarkitektur

MIPS 24Kc

Processorfrekvens

580 MHz

Flashminne

16 MB

Internminne

128 MB

Typ av internminne

DDR2

Produktens färg

Svart

Material, hölje

Gjuten aluminium

Monteringsbar på väggen

Ja

LED-indikatorer

LAN, Energiljus, WAN

Antennanslutning

RP-SMA

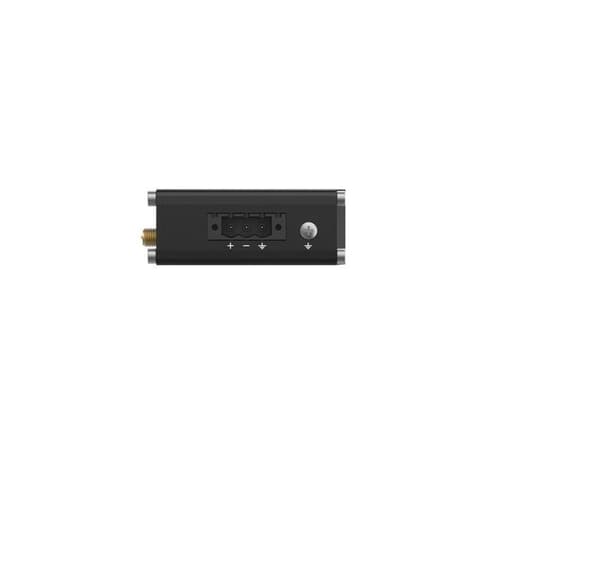

Strömkälla av typen

DC

Temperatur vid drift

-40 - 70 ° C

Intervall för relativ operativ luftfuktighet

10 - 90%

Bredd

113,1 mm

Djup

68,6 mm

Höjd

25 mm

Vikt

142,3 g

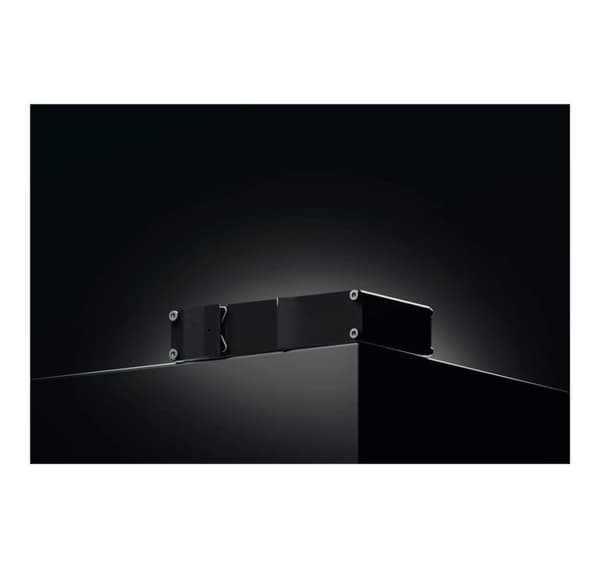

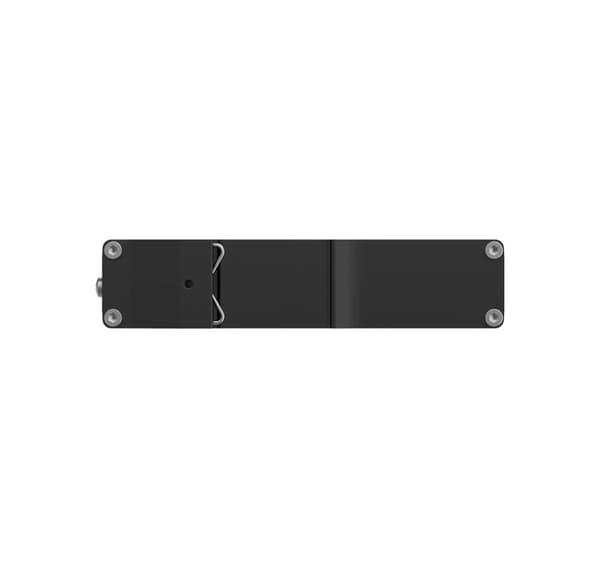

Montage

DIN-rail
