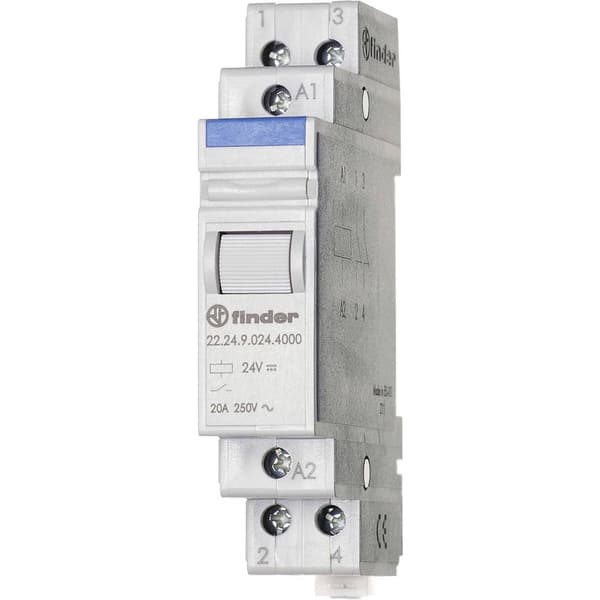

Finder 22.24.9.024.4000 industrirelä Växelström (max): 20 A 2 NC 1 st

Installation relay for 35 mm rail, 2 NC contacts for 20 A / 250 V AC, contact material AgSnO2, max. switching power at 230 V AC: AC1 5000 VA, AC15 1000 VA, incandescent and halogen lamps 1000 W, fluorescent lamps with EVG 400 W, fluorescent lamps with KVG 360 W, energy-saving lamps 200 W, LED (230 V AC) 200 W, NV halogen lamps or LED with EVG 200 W, NV halogen lamps or LED with KVG 400 W. Coil data 24 V DC, 1.25 W, 460 Ohm, width 17.5 mm, test button, Relay protection type: IP 20

This text is machine translated.

Features

Highlights

• Installationsreläer för 35 mm-skena
• 2 brytkontakt för 20 A/250 V AC
• Kontaktmaterial AgSnO²

leveransomfattning

• null
