Riktigt prisvärt komplett trådlöst mikrofonsystem. Ställbara frekvenser och IR frekvenssync. Många bra funktioner och enkelt. XLR och tele ut. Inkl. 19"" rackmonterings-vingar.

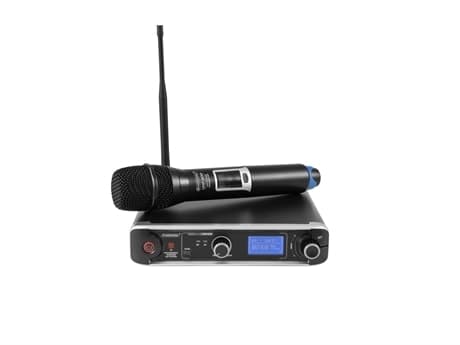

1-channel UHF PLL microphone system

• 1-channel multifrequency receiver unit and hand-held microphone with UHF PLL technology


• 93 preset channels in 10 channel groups


• Easy and error-free synchronization between receiver and transmitter via infrared signal


• LEDs for carrier and audio signal


• Detachable BNC antenna


• 1 dynamic microphone with cardioid polar pattern and LCD for battery capacity and frequency


• LCD display


• UHF 863 - 865 MHz License-free and approved in Europe


• Operating range up to 60m with line-of-sight

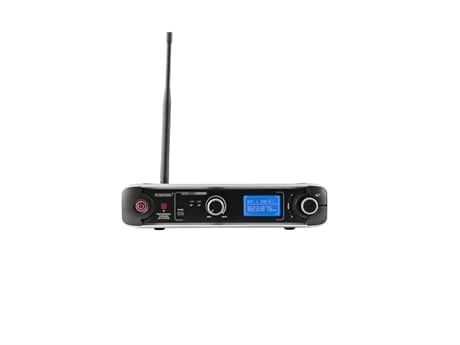

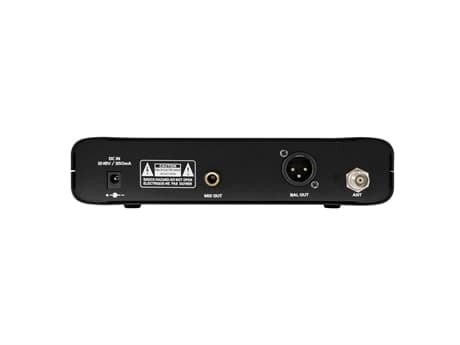

Receiver

• Desktop console housing


• (19") 48.3 cm rack installation possible 1 U

Microphone

• Polar pattern: Cardioid


• LCD display


• Charge status indicator

Package contents

• 1 x receiver, 1 x antenna, 1 x external mains adapter, 1 x microphone, 1 x jack cable, 1 x holder, 3 x mounting bracket, 4 x screw, 1 x user manual, 1 x declaration of conformity

Type:
Wireless set
Display type:
LCD display
Display:
Chanal , frequency , goup
Frequency band:
UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:
93 Switchable frequencies
Modulation:
FM; PLL technology
Frequency stability:
± 0,001 %
Range:
Range up to 60m with line-of-sight
Weight:
1,51 kg
Receiver
Power supply:
100-240 V AC, 50/60 Hz
12 V DC 350 mA
Power consumption:
4 W
Power connection:
Mains input via Coaxial power connector (M) mounting version power supply cord with AC adapter (provided)
Number of channels:
1
Frequency range:
50 - 18,000 Hz
S/N ratio:
>80 dB
THD:
