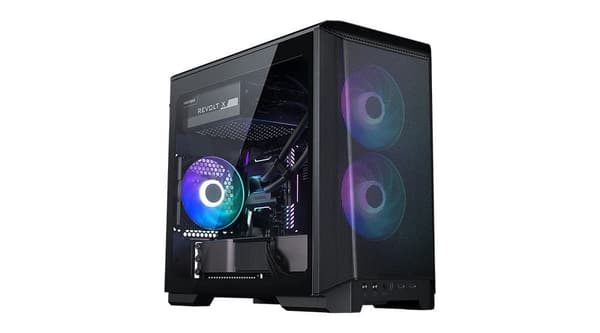

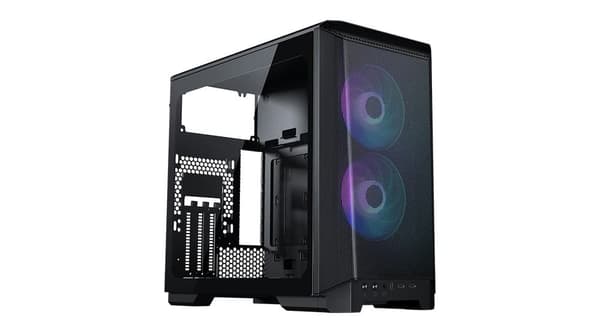

The Eclipse P200A is a high airflow mini-ITX chassis featuring the Ultrafine Performance Mesh to bring the highest cooling performance. The open interior offers plenty of space for standard ATX power supplies, triple-slot Graphics Cards and plenty of 240/280 radiator options in the front and side of the chassis.

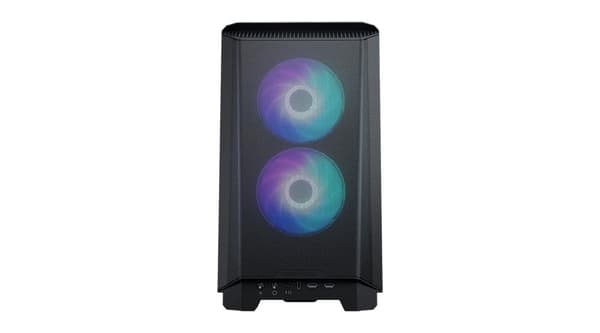

The Phanteks Ultra-Fine Performance mesh front and side panels allow high airflow while keeping dust out. No separate dustfilter is needed with Ultra-Fine Performance Mesh, which means less restriction and better performance.

The P200A D-RGB comes with pre-programmed D-RGB color presets for the included SK D-RGB fans (2x 120 mm) and diffuse lighting accent on the power button. These options can be controlled software-free with the physical D-RGB mode and color buttons on the front I/O.

Case Dimension (WxHxD): 205 mm x 365 mm x 400 mm

Form Factor: Mini-ITX Tower

Materials: Steel Chassis, Tempered Glass Window

Motherboard Support: Mini-ITX, mini-DTX

Front IO: USB-C GEN 2 (10Gbps) 2x USB 3.0 Microphone/Headphone LED Mode Button LED Color Button Power Button

Connectors: Power Switch D-RGB Expansion D-RGB Third Party D-RGB MB Adapter HD-audio USB 3.0 USB 3.2 GEN2 Type-E SATA

PCI Slots: 3

Vertical GPU ready: Yes, 3-slots (Riser Cable sold separately)

Internal 3.5”bay: 4 (Stackable 3.5” Bracket sold separately/not included)

Internal 2.5”bay: 4 (4x included)

Total Fan Mounts:  7 x 120 mm / 2 x 140 mm + 5 x 120 mm

Front Fan: 2 x 120 mm / 2 x140 mm (2 x 120 mm D-RGB PWM included)

Side Fan: 2 x 120 mm

Rear Fan: 1 x 120 mm

Bottom Fan: 2 x 120 mm

Dust Filters: Bottom

Front Radiator: Up to 240 / 280 mm

Side Radiator: Up to 240 mm

Rear Radiator: 120 mm

Front Radiator Clearance: 140 x 325 mm

Side Radiator Clearance: 120 x 279 mm

GPU Length: 355 mm

GPU Thickness: 3-slot, 65 mm

CPU Cooler Height: 165 mm

CPU Cooler Height with Vertical GPU: 72mm or 92mm depending on Vertical PCI slot position

PSU Length: 205mm (190mm recommended)
