Siemens Halvledar-relä 3RF20301AA22 30 A Växelspänning (max.): 230 V/AC Nollspänning 1 st

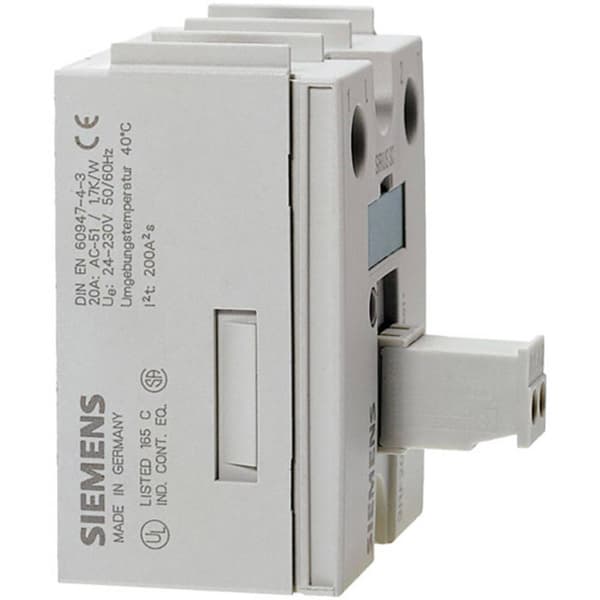

Semiconductor relay, 1-phase 3RF2 Overall width 45 mm, 30 A 24-230 V / 110-230 V AC screw terminal solid-state relay SIRIUS 3RF20 for switching resistive/inductive loads, e.g. of heaters or valves in a bottling plant. The devices are non-wearing and silent and are therefore ideal for noise-sensitive areas (offices, hospitals). They are also extremely reliable at high switching frequencies. The compact design saves space on the cooling surface. The solid-state relays can also be expanded for a wide range of applications by simply clicking on the standardized 3RF29 function modules. The devices are approved for worldwide use (e.g. IEC and UL/CSA). The solid-state relays are available as single-phase devices in two widths, or as three-phase devices. They are available for different power ratings and rated operating voltages. Designed for AC or DC operation, they are available with screw, spring-type or ring terminal lug connections. In addition to the 3RF29 function modules, control connectors and terminal covers are also available as accessories. Simple, efficient and always up to date - SIRIUS modular system.

Features

Highlights

• Bredd 45 mm

leveransomfattning

• null

OBS!

• Observera att det är produkten är skräddarsydd och därför undantas från tillbakadragande. Beställning, ingen tillbakadragande. Illustration similar.
