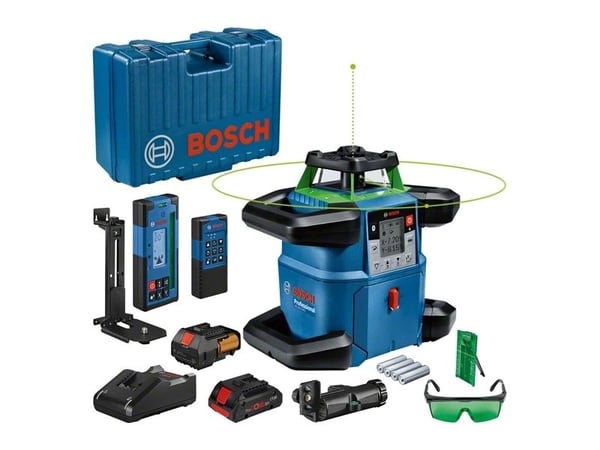

Name: Bosch GRL 650 CHVG rotationslaser 70 m grön 500-540 nm
Brand: Bosch
SKU: 10082010
Price: 27147 SEK
Availability: InStock

Bosch GRL 650 CHVG rotationslaser 70 m grön 500-540 nm | SKU: 0.601.061.V00 | Brand: Bosch | EAN: 4059952593654<br>

weight

Egenskaper

The maximum distance over which the device can maintain a stable connection or operate effectively, measured in m.

Maximal räckvidd

The maximum distance at which the laser beam can be detected when used in conjunction with a separate receiver, measured in m.

Maximalt avstånd (med mottagare)

The accuracy of a levelling device, which is used to align and level over long distances using a series of lasers which it projects.

Nivelleringsnoggrannhet (±)

Indicates whether the device automatically adjusts the laser beam to a perfectly horizontal or vertical position.

Självutjämnande

The number of degrees (usually within ± 3-5°) which a levelling device (laser) can level itself.

Självnivelleringsområde (±)

The speed at which the device or it's part turns.

Rotationshastighet

The angular width of the projected laser beam across the horizontal plane, measured in °.

Fläktvinkel (horisontell)

Specifies the safety category of the laser beam based on its potential to cause eye or skin injury (e.g., Class 1, Class 2, or Class 3R).

Laserklass

The wavelength and power output of the light source, often specified as a range or single value (e.g. 532 nm (< 5 mW)).

Laserdiod

Design

Indicates whether the device has a threaded socket for attachment to a tripod.

Kan monteras på trefotsstativ

The diameter of the mounting screw hole used to attach the device to a support stand, measured in ".

Stativgänga

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

Batteri

What is providing power for the product e.g. mains electricity.

Strömkälla

The length of time which the product can be operated for.

Drifttid

The type of battery in the device, e.g. nickel–cadmium (NiCd).

Batteriteknik

Beskrivningen av batteriet levereras med produkten

Batterityp

Batterispänning

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Djup

Höjd

Produktens vikt utan förpackning (nettovikt). Om möjligt nettovikten är angett inklusive standardtillbehör och förråd.Obs, ibland anger tillverkaren en för kommersiell interpretation av produktvikten, där han lämnar ut vikten av tillbehör och/eller förråd.

Bosch GRL 650 CHVG rotationslaser 70 m grön 500-540 nm

27 147 kr

27 147 kr

Produktbeskrivning

Bosch GRL 650 CHVG rotationslaser 70 m grön 500-540 nm

27 147 kr

27 147 kr

Egenskaper
Maximal räckvidd	70 m
Maximalt avstånd (med mottagare)	650 m
Nivelleringsnoggrannhet (±)	1,5 mm/m
Självutjämnande	Ja
Självnivelleringsområde (±)	8,5°
Rotationshastighet	600 RPM
Fläktvinkel (horisontell)	360°
Laserklass	2
Laserdiod	500-540 nm (< 10mW)

Design
Kan monteras på trefotsstativ	Ja
Stativgänga	5/8"
Internationellt skydd (IP) kod	IP68

Batteri
Strömkälla	Batteri
Drifttid	60 h
Batteriteknik	Litium-Ion (Li-Ion)
Batterityp	D
Batterispänning	18 V

Miljökrav
Temperatur vid drift	-10 - 50 ° C
Temperaturintervall (förvaring)	-20 - 50 ° C

Vikt & dimension
Bredd	327 mm
Djup	188 mm
Höjd	278 mm
Vikt	4,3 kg
