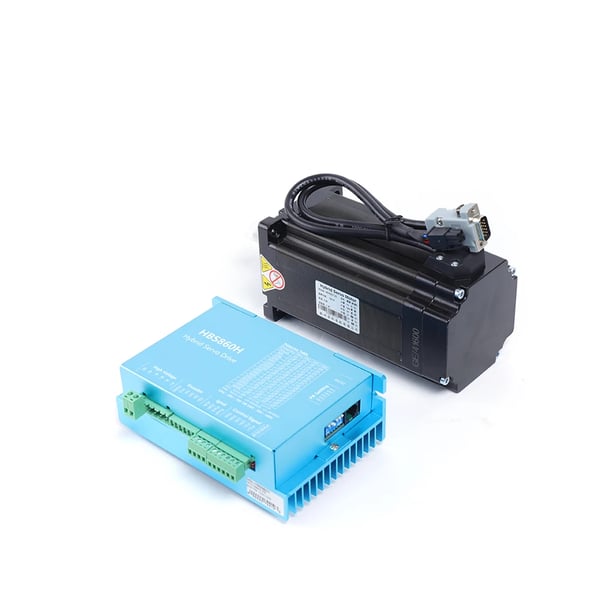

• Advanced Drive Technology: The kit includes the HBS86H driver and the 86HBS120 motor, which work together to deliver precise control and reliability for CNC routing, engraving, and milling tasks.
• High Torque and Precision: With a peak torque of 12 Nm and a step angle of only 1.8°, this motor ensures high performance and accuracy, making it perfect for intricate designs and heavy-duty applications.
• Wide Compatibility: The driver operates within a voltage range of AC20-80V / DC24-100V, providing flexibility with various power supply options to suit different installations.
• Efficient Operation: Equipped with a 32-bit DSP processor and a response frequency of up to 200 kHz, the system provides fast and efficient operation, reducing lag and improving overall performance.
• Easy Installation with Included Cables: The kit includes both a 3 m motor cable and a 3 m encoder cable, simplifying the installation process and ensuring you have everything you need right out of the box.

Specification:

• Driver Model: HBS86H
• Voltage: AC20-80V / DC24-100V
• Phase Current: 8 A/phase (peak load)
• Subdivision: 2-256 subdivisions, maximum 51200 steps/revolution
• Processor: 32-bit DSP digital
• Pulse Voltage: 5V-24V signal compatible
• Response Frequency: Up to 200 kHz
• Pulse Mode: Single pulse (default), double pulse (adjustable via software)
• Cooling Method: Fan cooling

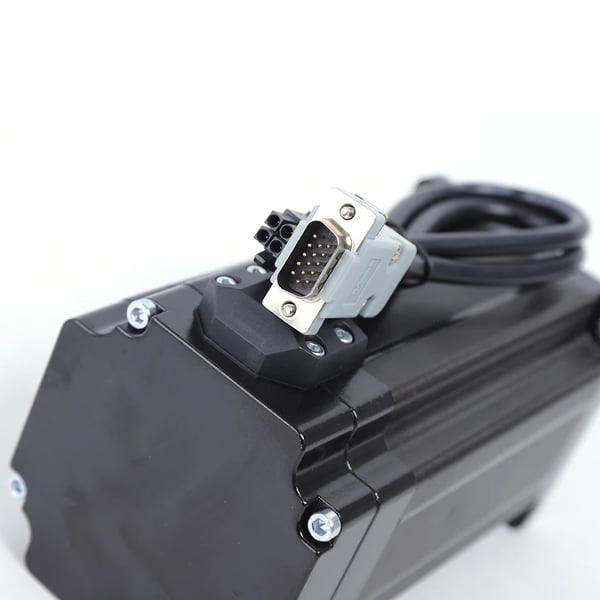

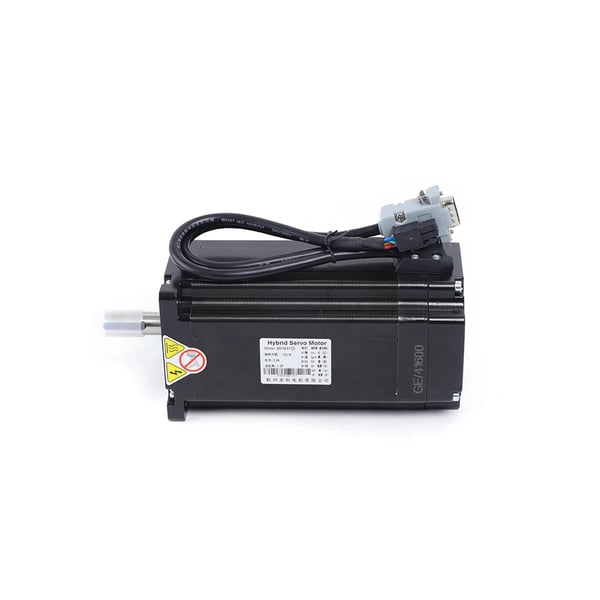

• Motor Model: 86HBS120
• Torque: 12 Nm
• Shaft Diameter: 14 mm
• Shaft Length: 40 mm
• Step Angle: 1.8°
• Step Angle Accuracy: ± 5%
• Surface Temperature: 80℃ or lower (nominal current)
• Motor Cable: 3 m
• Encoder Cable: 3 m

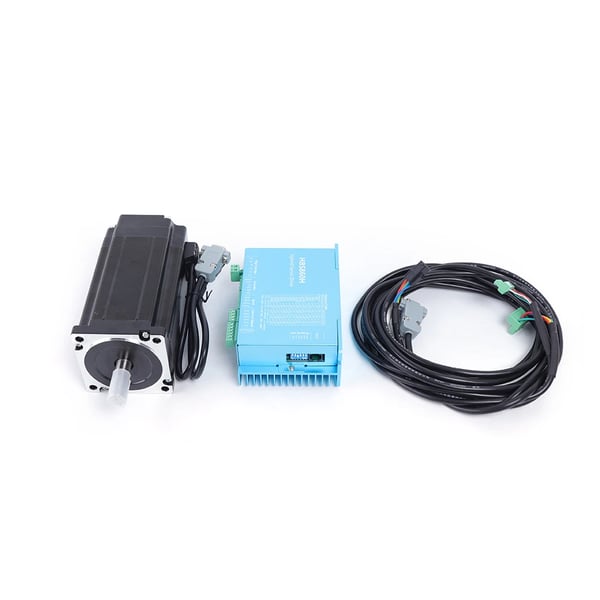

• Includes: 1 x HBS86H Driver, 1 x 86HBS120 Motor, 1 x 3 m Motor Cable, 1 x 3 m Encoder Cable

• Variant: 24V
