Indeks: T010026

TECHNICAL SPECIFICATIONS

Drill diameter (mm): 38

Thread: M14 (fits any angle grinder with M14 thread)

Drilling: Dry (without water)

Application: Drilling in ceramic tiles, stoneware, glaze, natural stone, clinker, marble, porcelain

Height of diamond coating: 10 mm

Maximum drilling depth: 40 mm

Recommended rotational speed during drilling: up to 11000 revolutions per minute

Expected lifetime by manufacturer: 30-80 holes (depending on material hardness and adherence to manufacturer's recommendations)

Wax for improved cooling: No

Material of body construction: Steel

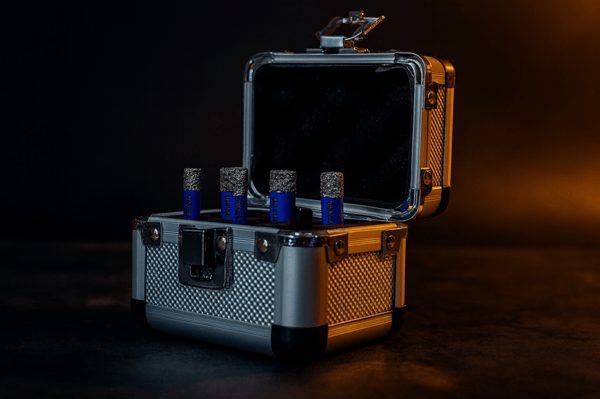

Packaging: Plastic tube (The suitcase shown in the auction is not included in the contents of this product)

Quantity in pack (pcs): 1

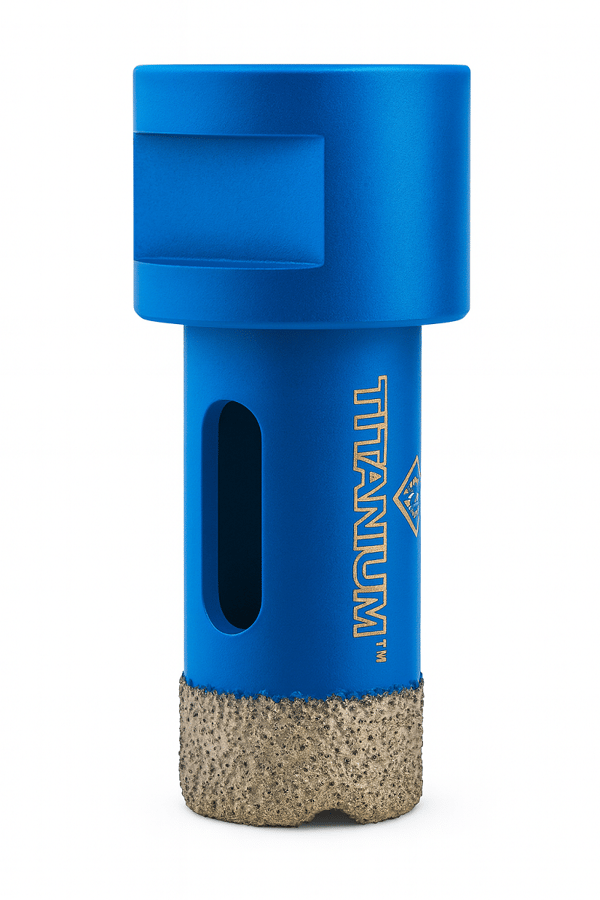

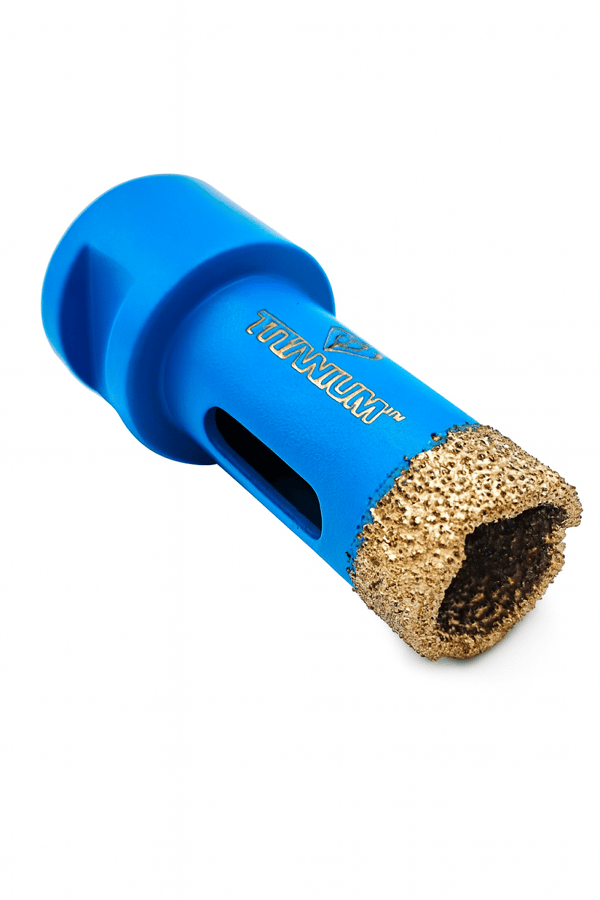

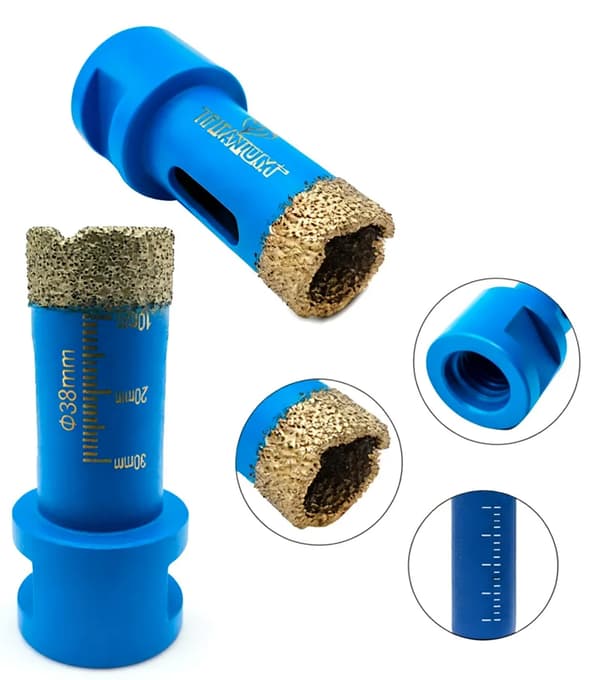

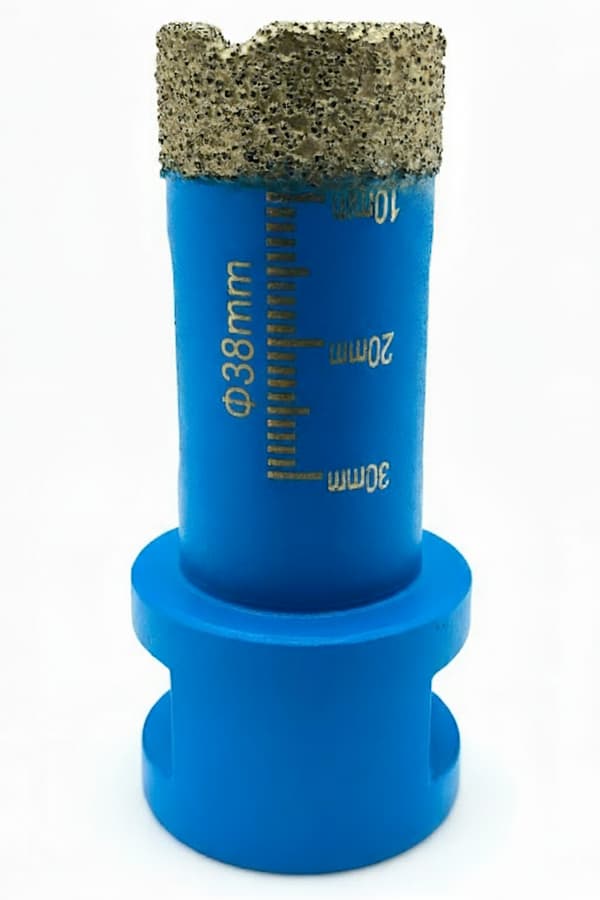

Wiertło diamentowe TITANIUM CeraMax

Nasza otwornica diamentowa ermöglicht dry drilling in the following materials: ceramic tile, marble tile, stoneware, glaze, clinker, natural stone, porcelain, thanks to high-quality vacuum-brazed diamond coating.

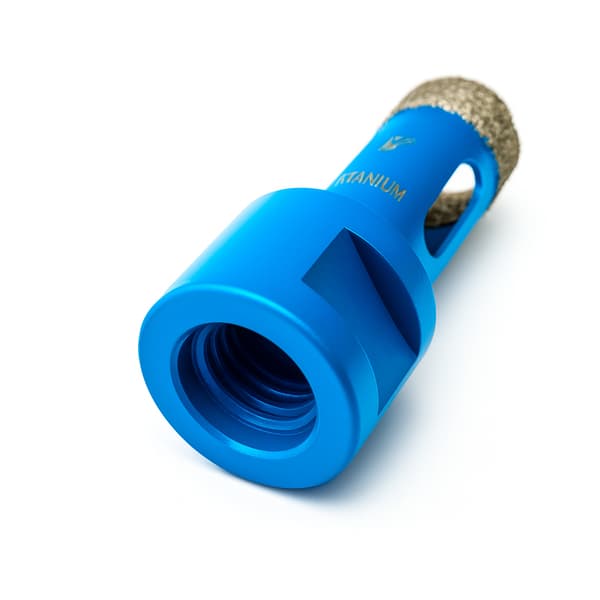

The core has a universal M14 thread, which allows it to be mounted on any angle grinder.

The drill body is made of high-quality steel.

The side hole facilitates cooling of the core and removal of debris, which significantly speeds up work and prevents the drill from clogging.

The core drill is delivered with a plastic packaging that facilitates storage.

The TITANIUM CeraMax core drill series consists of drills from diameter 6mm to 85mm. We invite you to view other sizes on our auctions.

INSTRUCTION FOR USE

MANUFACTURER'S RECOMMENDATIONS

Use the core drill only for dry drilling in stoneware tiles, ceramics, glaze, and porcelain. Do not drill in concrete or brickwork, as it will dull immediately.

Work at 8000–11000 rpm

Start drilling at a slight angle (approx. 15-30°), then gradually straighten the drill to stabilize the position.

Take short breaks - pause work every few seconds to cool the diamond segment by air flow and remove debris from the hole.

Do not press too hard during drilling, as it increases temperature and wears down the diamond coating.

‼ MOST COMMON MISTAKES DURING WORK

Too much pressure - diamond does not require force, only constant, appropriate speed.

Drilling without breaks - leads to overheating of the segment and its rapid wear.

Starting drilling at full speed perpendicular to the tile, which often results in its cracking.

Attempting to drill in concrete, metal, or wood.

Lack of cleaning the segment after work - baked dust shortens the diamond's lifespan.
