Name: Leviton 61110-RW6
SKU: 0078477144596
Price: 350 SEK
Availability: InStock

Leviton 61110-RW6. Konstruktion: Platt, Produktens färg: Vit, Anslutning 1: RJ-45. Bredd: 16,1 mm, Djup: 30,8 mm, Höjd: 22,5 mm. Antal per förpackning: 1 styck<br>

color

fryer_construction

Egenskaper

The way in which the product is constructed.

Konstruktion

Produktens färg

This is the first connector in the device.

Anslutning 1

This is the second connector in the device.

Anslutning 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Typ, kontakt 1

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Typ, kontakt 2

Kabeltyp tekniska prestanda, inklusive fiber eller kabeltyp

Kabelteknik

What the connector contacts are covered with (layer on top).

Plätering på anslutningskontakter

AWG kabelstorlek

Kabeltyper som stöds

Kabelskärmen

What the casing of the product is made of.

Material, hölje

Frekvens

Modularkontakt konfiguration

Certifiering

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Leviton 61110-RW6

350 kr

350 kr

Produktbeskrivning

Leviton 61110-RW6

350 kr

350 kr

Egenskaper
Konstruktion	Platt
Produktens färg	Vit
Anslutning 1	RJ-45
Anslutning 2	110 block
Typ, kontakt 1	Honkoppling
Typ, kontakt 2	Honkoppling
Kabelteknik	10/100/100Base-T(X)
Plätering på anslutningskontakter	Nickel/Guld
AWG kabelstorlek	26/22
Kabeltyper som stöds	Cat5, Cat5e, Cat6
Kabelskärmen	U/UTP (UTP)
Material, hölje	Plast
Frekvens	250 MHz
Modularkontakt konfiguration	T568A/B
Certifiering	TIA/EIA: TIA-568-B UL: cULus Listed CSA: Certified NEC: Article 800 Compliant FCC: Part 68 Compliant Rated UL94V-0

Miljökrav
Temperatur vid drift	-10 - 60 ° C
Temperaturintervall (förvaring)	-40 - 70 ° C

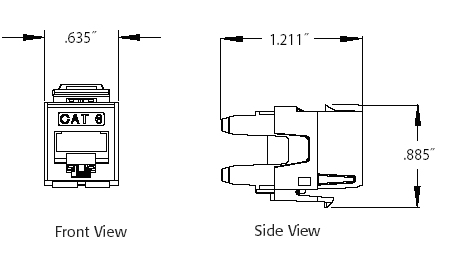

Vikt & dimension
Bredd	16,1 mm
Djup	30,8 mm
Höjd	22,5 mm

Förpackningens innehåll
Antal per förpackning	1 styck
