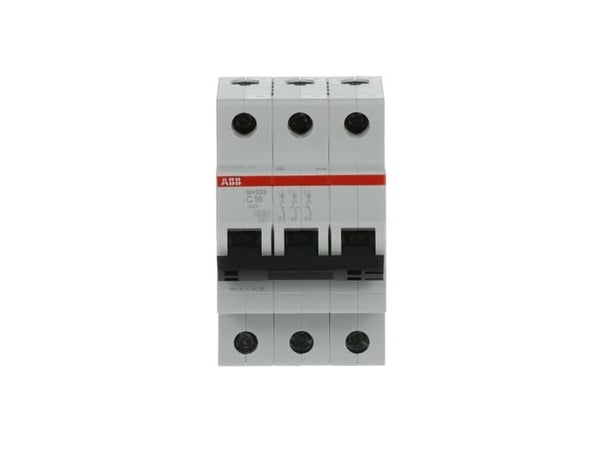

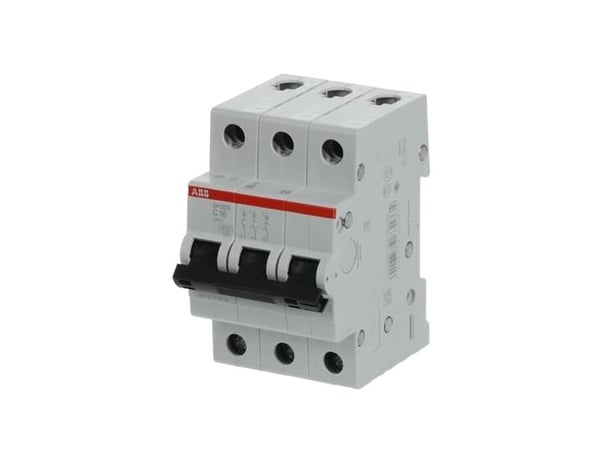

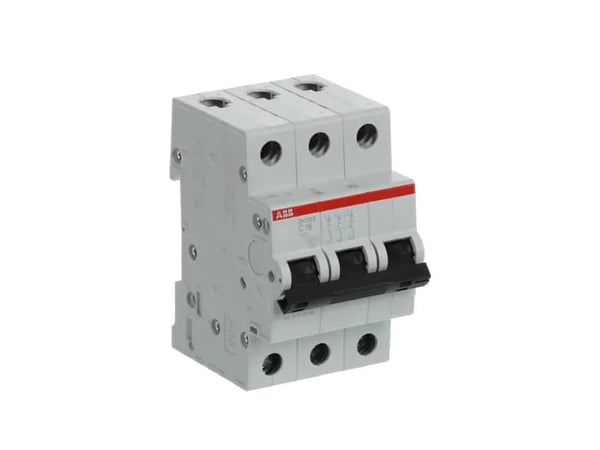

Name: ABB 2CDS213001R0164, Dvärgbrytare, IP20, 440 V AC
SKU: 5263601
Price: 261 SEK
Availability: InStock

ABB 2CDS213001R0164, Dvärgbrytare, IP20, 440 V AC | SKU: 2CDS213001R0164 | Brand: ABB | EAN: 4016779631334<br>

color

weight

Strömtillförsel

The voltage (V) which is required to power the product.

Spänning

The frequency (Hz) which is required to power the product.

Ingångsfrekvens

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Uppskattad strömförbrukning

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Uppmätt spänning

The amount of electrical energy dissipated as heat during operation, measured in W.

Total effektförlust

The maximum electric field that the insulating material can withstand before electrical breakdown occurs, typically measured in volts per unit of thickness.

Dielektrisk styrka

Egenskaper

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Typ av effektbrytare

The characteristic curve that defines the current level at which the device will trip, such as Type B or Type C.

Typ av brytningskurva

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Poltal

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

A fuse is a safety device consisting of a strip of wire that melts and breaks an electric circuit if the current exceeds a safe level.

Säkring typ

The level of protection provided against electric shock, categorized by the design of the insulation and grounding (e.g., Class II).

Skyddsklass

The colour e.g. red, blue, green, black, white.

Produktens färg

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Certifiering

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Djup

Höjd

Produktens vikt utan förpackning (nettovikt). Om möjligt nettovikten är angett inklusive standardtillbehör och förråd.Obs, ibland anger tillverkaren en för kommersiell interpretation av produktvikten, där han lämnar ut vikten av tillbehör och/eller förråd.

ABB 2CDS213001R0164, Dvärgbrytare, IP20, 440 V AC

261 kr

261 kr

Produktbeskrivning

ABB 2CDS213001R0164, Dvärgbrytare, IP20, 440 V AC

261 kr

261 kr

Strömtillförsel
Spänning	440 V AC
Ingångsfrekvens	50/60 hz
Uppskattad strömförbrukning	16 A
Uppmätt spänning	1400 V
Total effektförlust	7,5 W
Dielektrisk styrka	2000 V

Egenskaper
Typ av effektbrytare	Dvärgbrytare
Typ av brytningskurva	Typ C
Poltal	3
Internationellt skydd (IP) kod	IP20
Säkring typ	Termal
Skyddsklass	III
Produktens färg	Grå
Certifiering	IEC/EN 60898-1

Miljökrav
Temperatur vid drift	-25 - 55 ° C
Temperaturintervall (förvaring)	-40 - 70 ° C

Vikt & dimension
Bredd	52,5 mm
Djup	69 mm
Höjd	85 mm
Vikt	375 g
