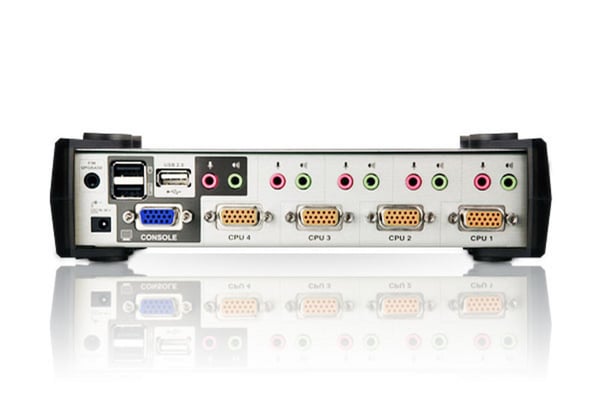

This switch has built-in USB 2.0 on each of the front and rear panels and audio signal connectors. It allows users to control the computer and peripheral devices via a signal console at ease. • 4-port KVM switch with USB 2.0 support and 2.1 surround sound audio
• One console controls four computers and two additional USB devices
• 2-port USB 2.0 hub built in
• USB 2.0 compliant
• Dual interface - supports computers with PS/2 or USB keyboard and mouse configurations
• Audio enabled - full bass response provides a rich experience for 2.1 surround sound systems
• Console audio ports on front panel for easy access – ideal for IP phone users
• Supports both USB and PS/2 keyboards and mice – configurations available with the included USB-to-PS/2
converter: USB keyboard and mouse; PS/2 keyboard and mouse; or PS/2 keyboard and USB mouse
• Independent switching of KVM, USB, and audio focus
• Superior video quality; 2048 x 1536; DDC2B
• Supports widescreen resolutions
• Computer selection via front panel pushbuttons, OSD (On Screen Display), and hotkeys
• Multiplatform support: Windows 2000/XP/Vista, Linux, Mac, and Sun
• Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice
• Display Emulation Technology - stores the console monitor's EDID (Extended Display Identification Data) to
optimize display resolution
• Complete keyboard emulation for error-free booting
• Sun/Mac keyboard support and emulation*
• Auto Scan Mode for monitoring all computers
• LED Display for easy status monitoring
• Easy installation – no software required
• Firmware upgradeable

*1.PC keyboard combinations emulate Sun/Mac keyboards
2.Sun/Mac keyboards only work with their own computers
