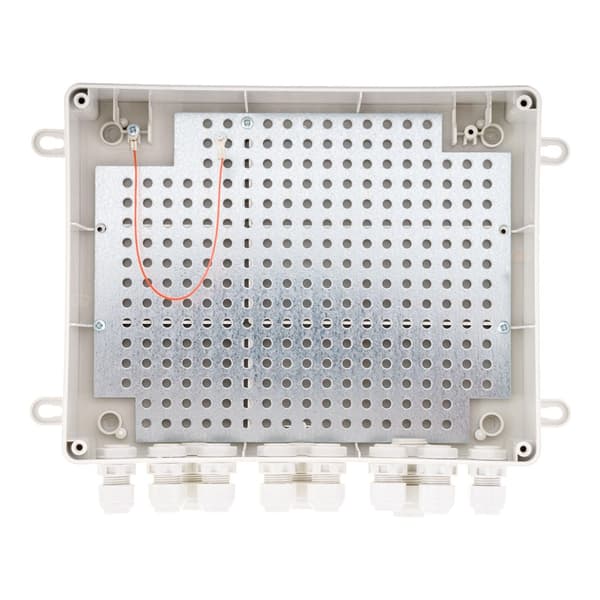

ABOX-L2 - Outdoor Enclosure IP56 Description The ABOX-L2 outdoor enclosure is a convenient solution for protecting devices and cable connections installed outdoors. High-quality plastic ensures resistance to UV radiation and other unfavorable weather conditions. This model is equipped with a mounting plate with a special 10.8mm pitch hole pattern, compatible with the mounting hole spacing of built-in modules. This system allows for vertical or horizontal mounting of selected devices in any punched part of the mounting plate. A large number of cable entries enables easy installation. Key features and functions of the ABOX-L2: UV plastic, gray; large number of cable entries; ability to store excess cable inside the enclosure; cover and enclosure connected by a cable for easy servicing; cable entry through the glands installed in the enclosure: 10xM16 and 1xM20; easy installation of additional modules, system-wide 4.8mm pitch hole pattern in a 10.8mm pitch; The optional ADD-PMAL adapter enables easy mounting of the housing on poles or lampposts; 4 brackets included enable mounting the housing without compromising the IP56 protection rating; Specifications Housing construction: Halogen-free material, resistant to UV radiation; Color: gray (RAL7035); Installed cable glands: 10x M16, 1x M20; Housing mounting: Wall-mounted, mounting brackets included. Mounting devices inside the housing: System hole punching 4.8 mm in a 10.8 mm raster. Protection rating: IP56. Operating temperature: -25°C 60°C. Dimensions (height / width / depth): 190 240 90 mm. Weight: 0.81 kg.
