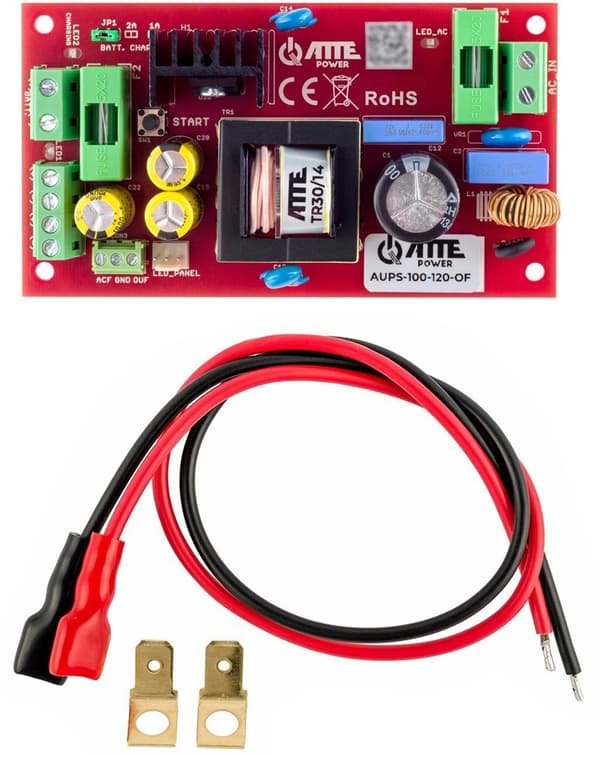

AUPS-100-120-OF Buffer Power Supply SMPS 12V, Vin 230VAC, Vout 10.2-13.8VDC, Iout 8A, Ich 1/2A, Pout 100W, built-in module Product Description: The AUPS series buffer power supply is designed for CCTV systems, access control systems, and alarm systems. The device is a convenient solution to the problem of buffer power supply for receivers requiring uninterrupted operation during periodic mains voltage outages. Using a buffer power supply significantly extends the system's runtime compared to applications using a traditional UPS. The system is compatible with maintenance-free SLA batteries (gel and AGM). The OF (Open Frame) design allows for installation in any enclosure, but the most convenient mounting method is in dedicated ABOX series enclosures and mounting plates equipped with system cutouts in a 10.8mm grid. It is compatible with the mounting hole spacing of built-in modules. This system solution allows for vertical or horizontal installation of selected devices in any pre-punched part of the enclosure or mounting plate. Key features include: long backup time compared to traditional UPS systems, energy savings and low internal enclosure heating thanks to the high efficiency of the power supply (90%), short-circuit (SCP), overload (OLP), overheat (OHP), and surge protection, battery protection against excessive discharge (UVP), overload, and reverse connection, and the ability to run without mains power (from a battery). OUF and ACF technical outputs (operation control and integration with other systems). Easy installation in ABOX series enclosures with 10.8 mm system openings. Additional information: the use of an additional ASUC series converter allows for increasing the output voltage and adapting it to the installation requirements (e.g., to 24/48/55 VDC). For receivers requiring a stable 12 VDC power supply, such as recorders and NAS network drives, we recommend using an additional AVC or AVIC series stabilizing module. Technical data: Battery: 1 x gel or AGM battery 12V / 7.. 18Ah. Output voltage: 10.2.. 13.8 VDC. Output current: 8 A - continuous, 10 A - maximum (while charging the battery). Power supply power: 100 W - continuous, 120 W - maximum (while charging the battery). Efficiency: 90% 100 W. Input voltage: 190.. 260 VAC, 50Hz. Battery charging current: 1 A or 2 A (selected with jumper JP1). Power supply input protection: 3.15A slow-blow fuse. Power supply output protection: . Mains power supply: Electronic overload protection at 12 A (automatic return after short circuit); Battery operation: 10 A fuse; Battery circuit protection: . Reverse battery connection and overload protection: 10 A fuse; Deep discharge protection: Battery disconnection for voltage below 10.2 V (automatic return after applying mains voltage).; Indication: . LED1 (yellow) - mains voltage presence; LED2 (green) - output voltage presence; LED3 (red) - battery charging.; Technical outputs: . OUF no voltage +DC OUT (NC); ACF no AC voltage (NC); Open collector outputs with a maximum load of 50mA (each output); Start-up in the event of AC power failure: Automatic after connecting the battery. Housing construction: None - built-in module. Mounting : Snap-in spacers, mounting holes in a 10.8 mm grid. Operating temperature: -25.. +50°C. Dimensions (W x H x D): 118 x 65 x 45 mm. Weight: 0.15 kg. Manufacturer code: AUPS-100-120-OF.
