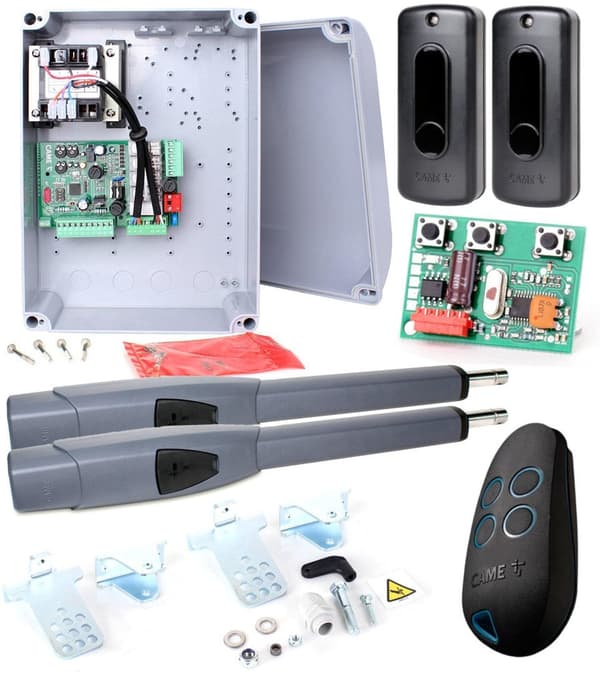

SWING GATE KIT: CAME ATS 30AGS STANDARD - 230V up to 3m FULL KIT CONTENTS - WHAT YOU ARE BUYING: Set of two gearmotors - CAME ATS30AGS 230V with limit switches ; Complete housing for the control unit with transformer and accessories ; Control unit - ZF1N ; Radio card - AF43S ; 1 four-channel remote control - ATOMO AT04 (black); Pair of photocells - DIR10 ; Steel brackets and mounting accessories ; 2 sets of release keys ; CAME lamp with antenna ; KEY FEATURES OF THE KIT: Maximum gate leaf weight: 400-800 kg; Gate power supply: 230V, 230V motor; Gate drive: mechanical; Maximum gate leaf length: 3 m; 2 limit switches as standard! ; INTENDED USE OF THE CAME ATS 30AGS KIT: IDEALLY designed to work with a residential swing gate with a frequency of use up to 20 times per hour!; UNIVERSAL - fits gates with steel and clinker posts, even when the gate hinge is mounted 20 cm from the edge of the post!; SECURE AND RESISTANT to all weather conditions - thanks to two limit switches built into the actuator, resistant to water and frost (IP67).; UNRIVALLED in its class - thanks to the thrust force of 3000 N and a screw extension of up to 40 cm, already in the version for a 3 m leaf.; WHY CHOOSE THE CAME ATS 30AGS STANDARD KIT? A complete set with modern ATS CAME telescopic actuators designed for 6m gates (2x3m leafs). ; The ATS30AGS version - typical for residential gates - has a motor protected by a thermal switch, powered by 230V, with a power of 250W and an efficiency of up to 20 cycles per hour. ; The ZF1 control unit allows for the use of basic functions typically required in residential applications. ; Reliability is guaranteed - regardless of ambient temperature changes - by, for example, gradual adjustment of the device's force on the transformer taps. ; The axial placement of the motor in the housing gives it a slim and elegant shape, while the bevel gear ensures smooth and quiet operation. ; Easy access to the actuator release from the top of the housing. ; The ATS is designed to automate double-leaf gates with a leaf length of up to 3m and a maximum weight of 400kg (the maximum weight of a single leaf is 800kg at a length of 2m). ; The set has been designed to fit all types of posts, both metal and clinker. ; Such a wide range of possibilities is provided by the telescopic steel arm's extension range of up to 40 cm! ; Each actuator has two built-in, smoothly adjustable switches that stop the gate in the end positions, made to the IP67 standard - resistant to water and frost, eliminating the need to use resistances (bumpers) for the gate when opening and closing. ; The anthracite color of the ATS housing (RAL7024) matches popular and modern fencing system designs. ; SPECIFICATION AND TECHNICAL DATA OF THE SET: Model: ATS30AGS; Max. leaf width in relation to its weight: 3m up to 400kg, 2.5m up to 600kg, 2m up to 800kg; Protection rating: IP44; Power supply: 230V, 50/60Hz; Motor power supply: 230V, 50/60Hz; Motor current consumption: 1A; Maximum motor power: 250W; Duty cycle: 20/hour; Thrust: 400/3000N; Wicket function: NO; Motor thermal protection: 150 degrees Celsius; Opening time to 90 degrees: 15 sec.; Operating temperature: from -20 to +55 degrees Celsius; ATTENTION! To ensure effective and reliable closing and to protect the gears of drives installed in swing gates, it is always recommended to install an electric lock. If the leaves are over 3 meters, an electric lock is mandatory.; .
