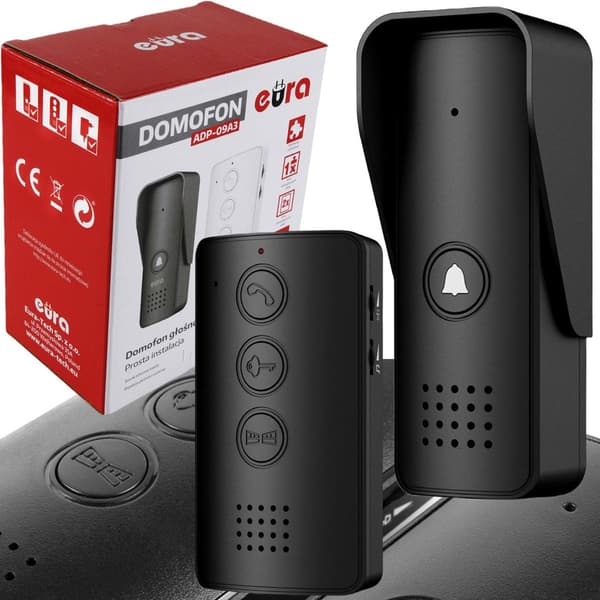

''EURA'' INTERCOM ADP-09A3 black; illuminated call button (white light); single-family; speakerphone; supports 2 entrances - wickets and gates; outdoor station resistant to harsh weather conditions; The intercom allows you to increase property security by controlling access to the building and communicating with people in front of the entrance. SET CONTENTS Uniphone; Outdoor station; Protective roof; Mounting accessories; Power supply; HANDSET UNIPHONE The speakerless uniphone has the function of supporting two entrances, thus allowing you to open a wicket and, for example, a gate. It is also equipped with a conversation volume control. TECHNICAL SPECIFICATIONS: Set: . Supply voltage: 12 V DC ; Power consumption - standby / operation: 1 W / 8 W ; Number of connecting wires: 3 ; Number of supported outputs: 2 ; Possible expansion: Yes ; Uniphone: . Output types: Output 1: 12V DC 350 mA Output 2: N.O. 30V DC/ 1A Max ; Bolt/gate activation time: Momentary button/momentary button ; Number of chime melodies: 1 ; Hands-free: Yes ; Protection rating: IP20 ; Uniphone operating temperature range: 0oC +55oC ; Uniphone dimensions (H x W x D): 134 x 74 x 29 mm ; Uniphone net weight: 130 g ; EXTERNAL POST The single-tenant external post of the intercom is designed for surface mounting. Made of durable plastic and protected with an additional roof, it guarantees resistance to adverse weather conditions. TECHNICAL SPECIFICATIONS: . Communication type: Wired ; Output types: Output1: 12V DC 350mA ; Max. number of tenants: 1 ; Housing material: Plastic ; External station mounting method: Surface-mounted ; Protective roof: Yes ; Protection factor: IP44 ; External station operating temperature range: -18oC +45oC ; External station dimensions (H x W x D): 136 x 56 x 40 mm ; Net station weight: 115 g ; DEVICE STRUCTURE LED indicator; Microphone; Wicket opening button; Gate opening button; Loudspeaker; Call answer button; Call volume adjustment; Ringtone volume adjustment; Protective roof; Microphone; Illuminated call button; Loudspeaker; CONNECTION DIAGRAM LEGEND External station; Output for electric strike; Uniphone; DC 12V power adapter; Output for gate automatic; ADDITIONAL INFORMATION 1. What cable should I use to connect the uniphone to the external station? . When designing the electrical installation, take into account the appropriate wire cross-section. up to 30m - recommended cable XzTKMXpw 4x2 x 0.5mm2; up to 50m - recommended cable XzTKMXpw 4x2 x 0.8mm2; 2. What cable should I use to connect the external panel to the bolt (electric strike)? The cable connecting the electric strike to the external box should be at least 2x1mm2. 3. Can the external panel be exposed to rain and snow? Yes, the device has a high water resistance coefficient IP44, so it can be exposed to weather conditions. 5. Can I use a DIN rail power supply? Yes, the recommended power supply should have a voltage of DC 12V and a power of not less than 2A.
