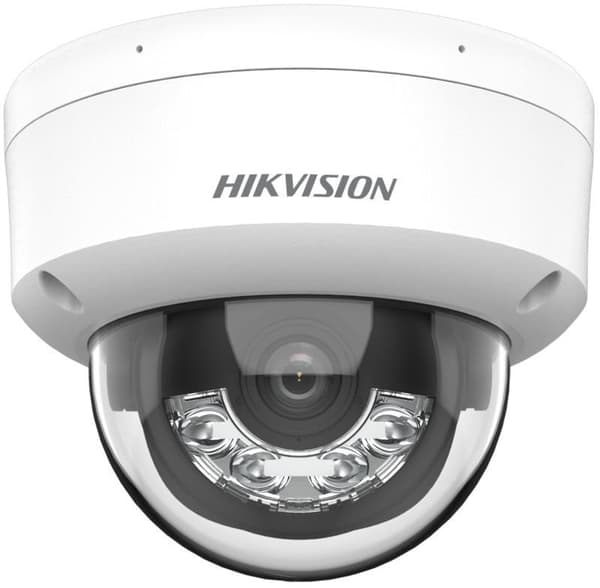

IP camera Hikvision DS-2CD1163G2-LIU 4mm PL Model: DS-2CD1163G2-LIU 4mm PL Technical specifications Image sensor1/2.4" Progressive Scan CMOSMax. Resolution 3200 1800 min. Color illumination: 0.005 Lux at (F1.6, AGC on), B/W: 0 Lux with IR on, Shutter speed: 1/3 s to 1/100,000 s, Day and night, IR filter off, Camera position adjustment, Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°, Lens type: Fixed lens, optional 2.8 or 4 mm, Focal length and field of view: 2.8 mm, Horizontal field of view: 105°, Vertical field of view: 55°, Diagonal field of view: 127°, 4 mm, Horizontal field of view: 78°, Vertical field of view: 38°, Diagonal field of view: 96°, Lens mount: M12, Aperture type: Fixed, Aperture: F1.6, 2.8 mm, Range: 76 m, O: 30 m, R: 15 m, I: 7 m, Range: 115 mm m, O: 45 m, R: 23 m, I: 11 mAuxiliary lightInfrared, white lightAuxiliary light rangeUp to 30 mIntelligent supplementary lightYesIR wavelength850 nmMain stream 50 Hz20 fps (3200 1800, 2688 1520, 1920 1080, 1280 720)Main stream 60 Hz20 fps (3200 1800, 2688 1520, 1920 1080, 1280 720) Substream 50 Hz 20 fps (1280 720, 640 480, 640 360) Substream 60 Hz 20 fps (1280 720, 640 480, 640 360) Video compression Main stream: H.265+/H.265/H.264+/H.264 Substream: H.265/H.264/MJPEG Video bit rate 32 Kbps to 16 Mbps H.264 type Baseline profile, Main profile, High profile H.265 type Main profile Bit rate control CBR/VBR Scalable Video Coding (SVC) H.264 and H.265 encoding ROI 1 fixed area for main stream Audio type Mono Audio compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC Audio bit rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) Audio sampling rate 8 kHz/16 kHz Environmental noise filtering Yes Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP Simultaneous live view Up to 6 channels API Open Network Video Interface (Profile S, Profile T, Profile G) (only supports -F model)), ISAPI, SDK, Hik-Connect User/Host Up to 32 users Up to 3 users: administrator, operator and user Security Password protection, complex password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit protocol, host authentication (MAC address) Clients VMS-4200, Hik-Connect web browser live view plugin required: TJ. 10, TJ. 11 Local services: Chrome 57.0+, Firefox 52.0+, Edge 89+ Image settings Corridor mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable via client software or web browser Day/night switch Day, night, auto, schedule WDR (wide dynamic range) 120 dBSNR 52 dBImage quality enhancement BLC, HLC, 3D DNR Privacy mask 4 programmable polygonal privacy zone masks Interface Ethernet1 RJ-45 10M/100M, self-adaptive Ethernet portMemory card slot F:Built-in memory card slot, support microSD/microSDHC/microSDXC cards up to 512 GBBuilt-in microphoneYesReset-F:YesBasic eventsMotion detection (support alarm triggered by certain types of targets (human/vehicle)), image tampering, exceptionConnectionTransfer to FTP/memory card (-F), notification to surveillance center, sending emails, triggering recording (-F), triggering shootingPower supply 12 VDC 25%, 0.5 A, max. 6 W, coaxial power connector Ø5.5 mm, reverse polarity protection PoE: IEEE 802.3af, class 3, max. 7.5 W Material Metal and plastic Dimensions Ø121.4 mm 97.6 mm (Ø4.78" 3.84") Package dimensions 150 mm 150 mm 141 mm (5.9" 5.9" 5.6") Weight Approx. 550 g (1.2 lb) Weight with package Approx. 800 g (1.8 lb) Storage conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity is 95% or less (non-condensing) Operating conditions and startup 30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)Polish languageGeneral featuresHeartbeat, anti-banding, mirroring, password protection, password reset via emailEMCCE-EMC:EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021,EN 61000-3-3:2013+A1:2019+A2:2021RCM: AS/NZS CISPR 32 2015IC: ICES-003: Issue 7SafetyUL: UL 62368-1CB: IEC 62368-1: 2014+A11CE-LVD:EN 62368-1: 2014/A11: 2017BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005EnvironmentCE-RoHS: 2011/65/UEWEEE: 2012/19/EUScope: Regulation (EC) No. 1907/2006Protection IP67: IEC 60529-2013, IK08: IEC 62262:2002.
