Switch typ

hanterad

Switch kapacitet

1920 Gbit/s

Genomströmning

1142,8 Mpps

Latens (1 Gbps)

2,9 ps

Latens (10 Gbps)

2 ps

Produktens färg

Grå

Inbyggd processor

Ja

Processor

QorIQ P2020

Processorfrekvens

1200 MHz

Minnestyp

DDR3-SDRAM

Internminne

4096 MB

Flashminne

16 MB

Strömförsörjning ingår

Nej

AC-inspänning

200 - 240 V

Notering för strömförsörjning

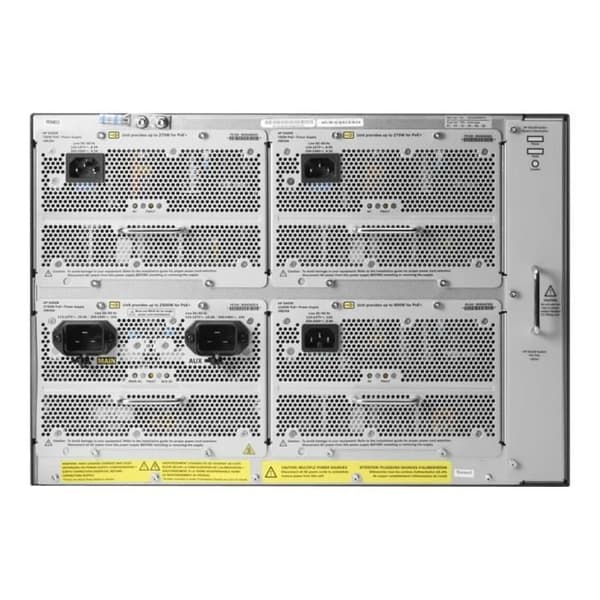

4 power supply slots 2 minimum power supplies required (ordered separately)

Strömförsörjning via Ethernet (PoE) stöd

Nej

Latens

1000 Mb Latency: < 2.8 μs; 10 Gbps Latency: < 1.8 μs; 40 Gbps Latency: < 1.5 μs

Minne och processor

Depend on the model: Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Arm 11 at 450 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1; Packet buffer size: 13.5 MB internal Arm 11 at 550 MHz; Packet buffer size: 18 MB internal. Dual Arm Cortex A9 at 1 GHz; Packet buffer size: 13.5 MB internal Freescale P2020 dual core at 1.2 GHz, 16 MB flash, 1 GB SD Card, 4 GB DDR3 SODIMM.

Externa anslutningar

12 open module slots Supports a maximum of 288 autosensing 10/100/1000 ports or 288 SFP ports or 96 SFP+ ports or 96 HPE Smart Rate Multi-Gigabit or 24 40 GbE ports, or a combination.

Prestandahantering

HPE Aruba Networking Management Software HPE Aruba Networking Central HPE Intelligent Management Center Basic Software Platform (IMC) Command-line interface Web browser Configuration menu Out-of-band management (RJ-45 Ethernet) Out-of-band management (serial RS-232C or micro USB) SNMP manager

Vikt (imperial)

17,3 kg (38.1 lbs)

Dimension (B x D x H) (imperial)

444,5 x 450,9 x 307,3 mm (17.5 x 17.8 x 12.1")

Värmeavgivning

4900 BTU/h

Bredd

444,5 mm

Djup

450,9 mm

Höjd

307,3 mm

Vikt

17,3 kg
