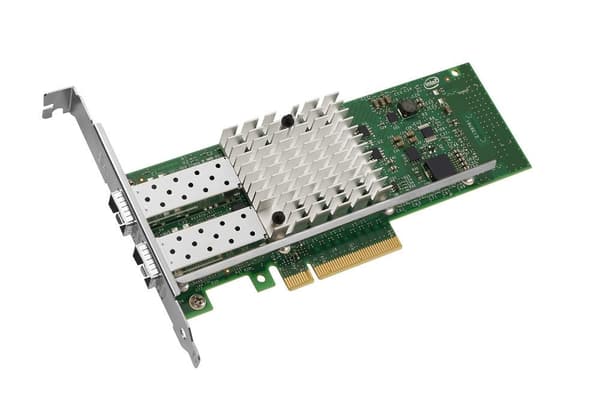

Intel E10G42BTDA Network Card Internal Ethernet 10000 Mbit/s

Name: Intel E10G42BTDA Network Card Internal Ethernet 10000 Mbit/s
Brand: Intel
SKU: AC0083569
Price: 8516 SEK
Availability: InStock

8 516 kr

I lager

Ons, 10 jun - fre, 12 jun

Hemleverans

Säker betalning

14-dagars öppet köp

Säljs och levereras av

Shopyourproduct

Produktbeskrivning

Intel s new family of Intel Ethernet X520 Server Adapters are the most flexible and scalable Ethernet adapters for today s demanding data center environments.The Intel Ethernet X520 Server Adapter family addresses the demanding needs of the next-generation data center by providing unmatched features for virtualization. flexibility for LAN and SAN networking. and proven. reliable performance.Features and benefits- Intel 82599 10 Gigabit Ethernet ControllerIndustry-leading. energy-efficient design for next-generation 10 Gigabit performance and multi-core processors;- Low-profileEnables higher bandwidth and throughput from standard and low-profile PCIe slots and servers;- Load balancing on multiple CPUsIncreases performance on multi-processor systems by efficiently balancing network loads acrossCPU cores when used with Receive-Side Scaling (RSS) from Microsoft or Scalable I/O on Linux ;- iSCSI remote boot supportProvides centralized storage area network (SAN) management at a lower cost than other iSCSI solutions;- Support for most network operating systems (NOS)Enables widespread deployment;- RoHS-compliant2Complies with the European Union directive 2002/95/EC to reduce the use of hazardous materials;- Intel PROSet utility for Microsoft Windows Device ManagerProvides point-and-click management of individual adapters. advanced adapter features. connectionteaming. and virtual local area network (VLAN) configuration;- Time Sync (IEEE 1588. 802.1as)Lets networked Ethernet equipment synchronize internal clocks according to a network master clock;endpoint can then acquire an accurate estimate of the master time by compensating for link latency;.

Anslutningsteknik

Kabel

Artikel.nr.

bcabc38f-032a-5139-b001-af919b6be0f7

Anslutningar
Anslutningsteknologi	Kabel
Värdgränssnitt	PCI Express
Gränssnitt	Ethernet
Antal LAN (RJ-45) anslutningar	2
Fiberoptiska kontakten	SFP+
PCI-version	2.0

Nätverk
Maximal dataöverföringshastighet	10000 Mbit/s
Datahastighet för Ethernet-LAN	10,1000 Mbit/s
Full duplex	Ja
Maximal räckvidd	10 m
LAN-styrenhet	Intel® 82599

Design
Intern	Ja
Kretsar	Intel® 82599EN
Plug & Play-kompatibel	Ja
Certifiering	FCC B, UL, CE, VCCI, BSMI, CTICK, KCC

Systemkrav
Kompatibla operativsystem	https://www.intel.com/content/www/us/en/support/articles/000025890/network-and-i-o/ethernet-products.html

Miljökrav
Temperatur vid drift	0 - 55 ° C
Temperaturintervall (förvaring)	-40 - 70 ° C

Vikt & dimension
Bredd	145,5 mm

Logistikdata
Harmonized System (HS)-kod	85176990

Övrigt
Efterlever industristandard	IEEE 802.3
Typ av kabel	SFP+ Direct Attached Twin Axial Cabling up to 10m
Marknadssegment	Server
Dataöverföringshastighet	10 Gbit/s
Antal anslutningar	2
Länk-/aktivitets-LED	Ja
Intel® Virtualization Technology (Intel® VT)	VT-c
Intel® Virtual Machine Device köer (VMDq)	Ja
PCI-SIG * SR-IOV Kan	Ja
On-chip QoS och trafikledning	Ja
Intel® Flexibel port Partitionering	Ja
Hastighet och spårbredd	5.0 GT/s, x8 Lane
Meddelandesignal avbrott	Ja
Alternativ för låghalogen finns tillgängliga	Nej
Intelligenta avlastar	Ja
iWARP / RDMA	Nej
Fiberkanal via Ethernet	Ja
Intel® Ethernet Power Management	Ja
Intel® Data Direct I / O-teknik	Ja
Intel® Virtualization Technology för anslutning (VT-c)	Ja
Gränssnittstyp	PCIe v2.0 (5.0 GT/s)
Produkttyp	Network Interface Card
Födelsedatum	Q3'09
Värmeavledningseffekt (TDP)	8,6 W
Antal QPI länkar	Dual
Lanseringsdatum	Q3'09
Processorfamilj	500 Network Adapters (up to 10GbE)-500 Network Adapters (up to 10GbE)
ARK-ID för Ethernet-kort	39776
ECCN (Export Control Classification Number)	5A992C
Lagring över Ethernet	iSCSI, FCoE, NFS
Nätverkskortets kabelmaterial	Copper
Typ av nätverkskort	Server
URL till produktbeskrivning	https://www.intel.com/content/www/us/en/ethernet-products/converged-network-adapters/ethernet-x520-server-adapters-brief.html
Produktnamn	Intel Ethernet Converged Network Adapter X520-DA2
Status	Launched
Senaste ändring	64826816
CCATS (Commodity Classification Automated Tracking System)	G135872
Kontrolltyp	Intel® 82599 10 Gigabit Ethernet Controller
Typ av kablage	SFP+ Direct Attached Twin Axial Cabling up to 10m
Fästets höjd	Low-Profile (LP) / Full-Height (FH)
Produktfamilj	Intel 10 Gigabit server adapter
Produktserie	500 Series Network Adapters (up to 10GbE)
Produktens kodnamn	Spring Fountain
