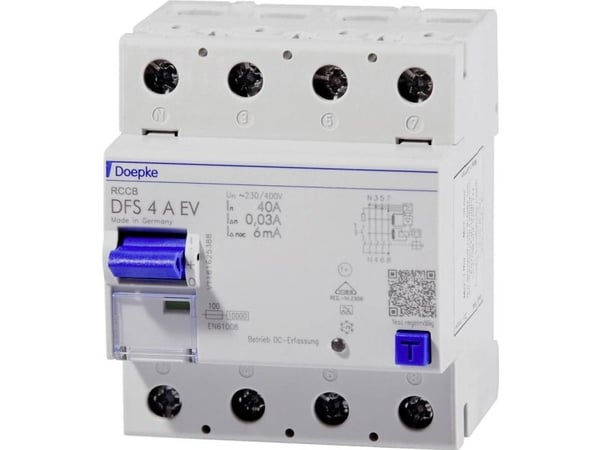

Name: Jordfelsbrytare FI DFS4 040-4/0,03-A EV (09134818)
SKU: 5679399
Price: 4192 SEK
Availability: InStock

Jordfelsbrytare FI DFS4 040-4/0,03-A EV (09134818) | SKU: 09134818 | Brand: Doepke | EAN: 4014712215955<br>

Strömtillförsel

Uppskattad strömförbrukning

Egenskaper

Typ av effektbrytare

Modell

Poltal

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

Föroreningsgrad

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Jordfelsbrytare FI DFS4 040-4/0,03-A EV (09134818)

4 192 kr

4 192 kr

Produktbeskrivning

Jordfelsbrytare FI DFS4 040-4/0,03-A EV (09134818)

4 192 kr

4 192 kr

Strömtillförsel
Uppskattad strömförbrukning	40 A

Egenskaper
Typ av effektbrytare	Jordfelsbrytare
Modell	Typ A
Poltal	4
Internationellt skydd (IP) kod	IP20
Föroreningsgrad	2

Miljökrav
Temperatur vid drift	-25 - 40 ° C
Temperaturintervall (förvaring)	-35 - 75 ° C

Vikt & dimension
Bredd	72 mm
Djup	75 mm
Höjd	85 mm

Jordfelsbrytare FI DFS4 040-4/0,03-A EV (09134818)

4 192 kr

4 192 kr

Produktbeskrivning

Specifikationer

Jordfelsbrytare FI DFS4 040-4/0,03-A EV (09134818)

4 192 kr

4 192 kr
