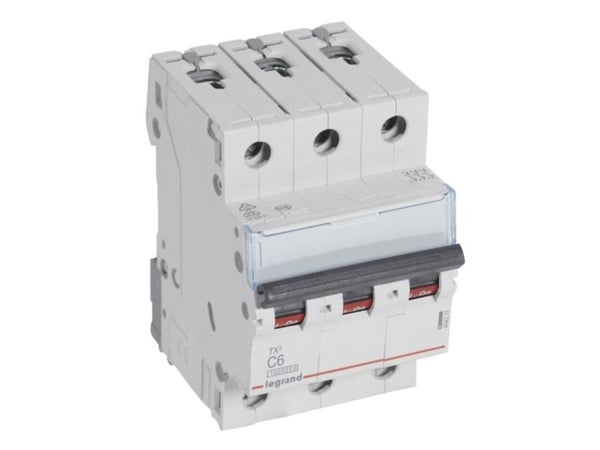

Name: Legrand dvärgbrytare 3P C 6A 10kA AC S313 TX3 (404218)
SKU: 5510167
Price: 601 SEK
Availability: InStock

Legrand dvärgbrytare 3P C 6A 10kA AC S313 TX3 (404218) | SKU: 404218 | Brand: Legrand | EAN: 3414970394316<br>

Strömtillförsel

The voltage (V) which is required to power the product.

Spänning

The frequency (Hz) which is required to power the product.

Ingångsfrekvens

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Uppskattad strömförbrukning

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Uppmätt spänning

The maximum electric field that the insulating material can withstand before electrical breakdown occurs, typically measured in volts per unit of thickness.

Dielektrisk styrka

Egenskaper

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Typ av effektbrytare

Modell

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Poltal

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

The level of contamination of the environment in which the device is used, categorized by the risk of electrical breakdown due to pollution (e.g. 2 or 3).

Föroreningsgrad

The classification of the device's ability to limit the let-through energy during a short-circuit fault, typically categorized by levels such as 1, 2, or 3.

Energibegränsningsklass

The way in which the product is being installed.

Installationssätt

Miljökrav

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Djup

Höjd

Tekniska detaljer

Specifies the harmful or restricted substances that are not present in the product (e.g. Acetone, Alcohol, or Aluminium).

Legrand dvärgbrytare 3P C 6A 10kA AC S313 TX3 (404218)

601 kr

601 kr

Produktbeskrivning

Legrand dvärgbrytare 3P C 6A 10kA AC S313 TX3 (404218)

601 kr

601 kr

Strömtillförsel
Spänning	240 - 415 V
Ingångsfrekvens	50 - 60 hz
Uppskattad strömförbrukning	6 A
Uppmätt spänning	400 V
Dielektrisk styrka	4000 V

Egenskaper
Typ av effektbrytare	Dvärgbrytare
Modell	Typ C
Poltal	3
Internationellt skydd (IP) kod	IP20
Föroreningsgrad	2
Energibegränsningsklass	3
Installationssätt	DIN-skena

Miljökrav
Temperaturintervall (förvaring)	-40 - 70 ° C

Vikt & dimension
Bredd	53,1 mm
Djup	77,8 mm
Höjd	88 mm

Tekniska detaljer
Innehåller inte	halogen
