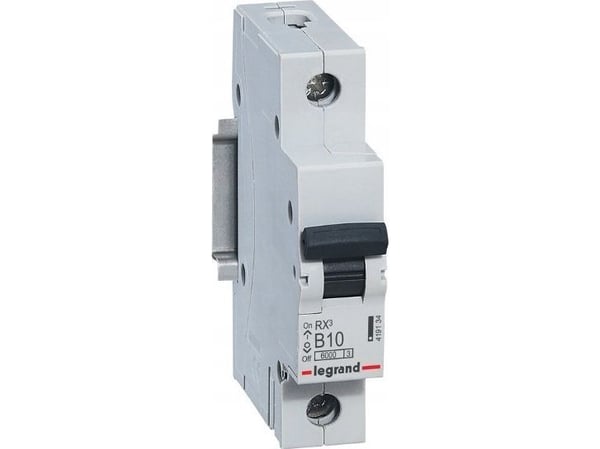

Name: Legrand RX3, Dvärgbrytare, Typ B, IP20, 210 - 250 V
SKU: 5510599
Price: 958 SEK
Availability: InStock

Legrand RX3, Dvärgbrytare, Typ B, IP20, 210 - 250 V | SKU: 419138 | Brand: Legrand | EAN: 3414970366788<br>

Strömtillförsel

The voltage (V) which is required to power the product.

Spänning

The frequency (Hz) which is required to power the product.

Ingångsfrekvens

Uppskattad strömförbrukning

Uppmätt spänning

Dielektrisk styrka

Egenskaper

Typ av effektbrytare

Modell

Poltal

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

Föroreningsgrad

Energibegränsningsklass

The way in which the product is being installed.

Installationssätt

Miljökrav

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Legrand RX3, Dvärgbrytare, Typ B, IP20, 210 - 250 V

958 kr

958 kr

Produktbeskrivning

Legrand RX3, Dvärgbrytare, Typ B, IP20, 210 - 250 V

958 kr

958 kr

Strömtillförsel
Spänning	210 - 250 V
Ingångsfrekvens	50 - 60 hz
Uppskattad strömförbrukning	25 A
Uppmätt spänning	230 V
Dielektrisk styrka	4000 V

Egenskaper
Typ av effektbrytare	Dvärgbrytare
Modell	Typ B
Poltal	1
Internationellt skydd (IP) kod	IP20
Föroreningsgrad	2
Energibegränsningsklass	3
Installationssätt	DIN-skena

Miljökrav
Temperaturintervall (förvaring)	-40 - 70 ° C

Vikt & dimension
Bredd	17,7 mm
Djup	77,8 mm
Höjd	88,5 mm
