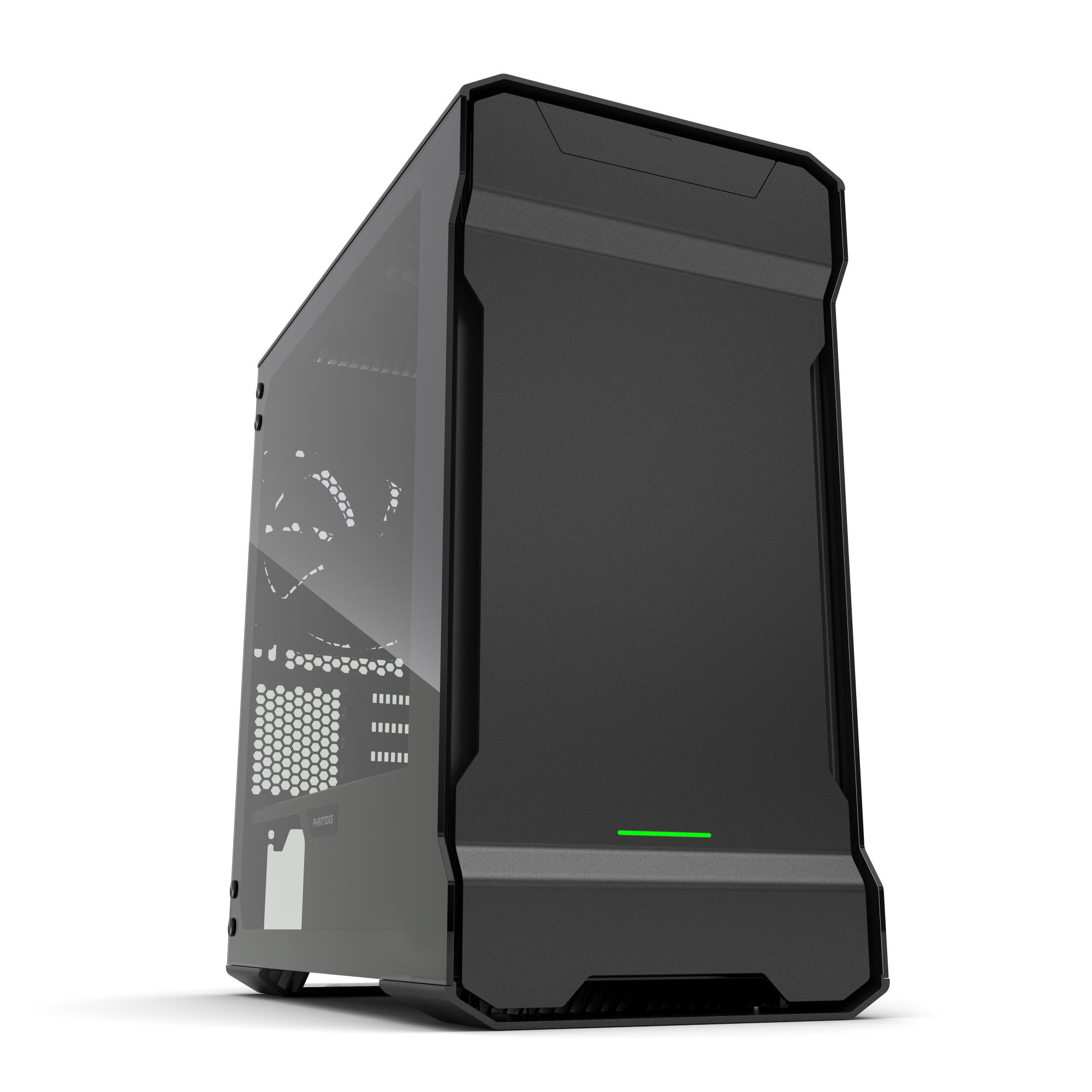

The Enthoo EVOLV, a mATX/mITX chassis, sports a beautiful all aluminum exterior. The EVOLV supports many high end PC components while maintaining a minimalist design.



CASE SPECIFICATIONS

Dimension: 230 mm x 453 mm x 400 mm (W x H x D)

9.1 in x 17.8 in x 15.7 in

Form Factor: Micro tower

Material(s): Aluminium (3mm), Tempered glass (4mm), Steel Chassis

Motherboard support: Micro ATX, Mini ITX

Front I/O: 2x USB 3.0, Mic, Headphone, RGB LED control

Side window: Yes, tempered glass panels (left and right)



EXPANSION & DRIVE BAYS

Expansion slots: 4

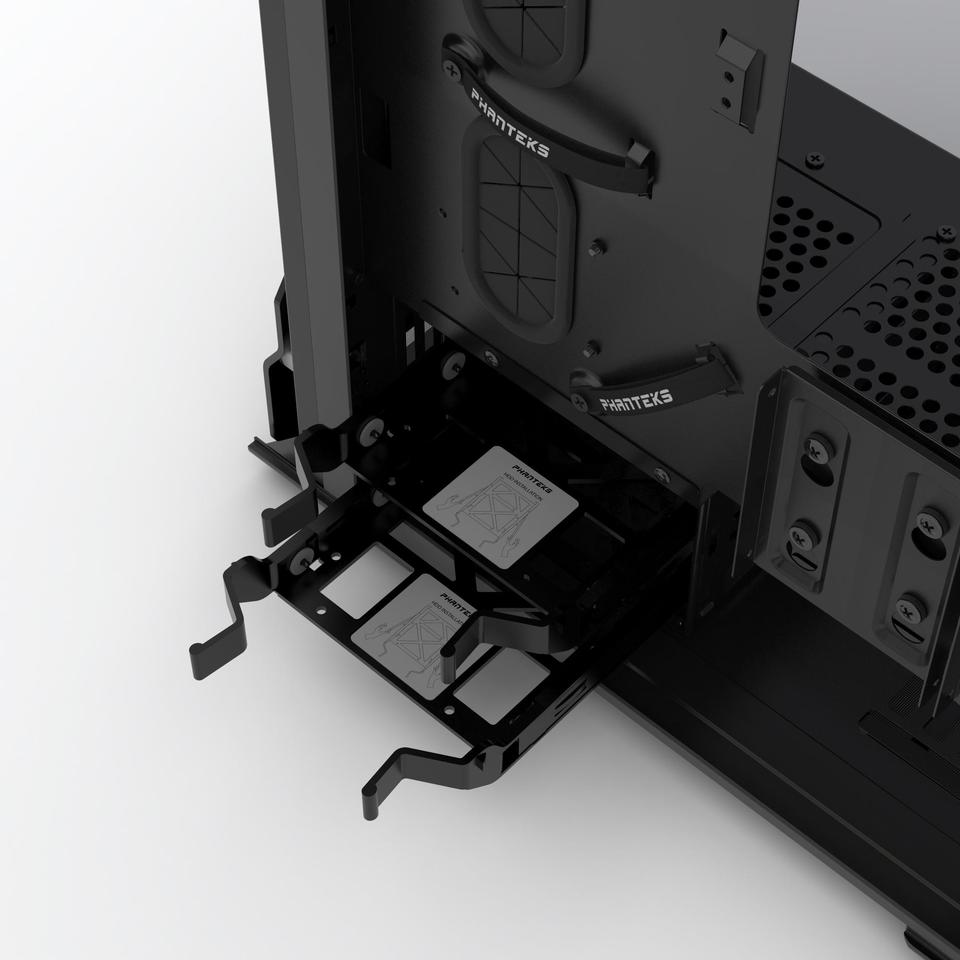

Internal 3.5": 2x

Internal (dedicated) 2.5": 2x



COOLING 120mm fan 140mm fan

Front 3x 2x (1 included)

Top 2x 2x

Rear 1x 1x (1 included)



LIQUID COOLING 120mm radiator 140mm radiator

Front Up to 360* Up to 140

Top Up to 240 Up to 280

Rear 120 140

*3.5" HDD brackets needs to be removed for 360 radiators (up to 126mm wide is supported).



CLEARANCE

Graphic card: 319 mm (12.5 in)

CPU cooler: 192 mm (7.5 in)

Cable management: 26 mm (1.0 in)

PSU (including cable): 216 mm (8.5 in)



PACKAGING

Model: PH-ES314ETG_BK

Net Weigth: 9 kg (19.8 lbs)

Gross Weigth: 10 kg (22.0 lbs)

Package Dimension: 308 mm x 540 mm x 463 mm (WxHxD)
