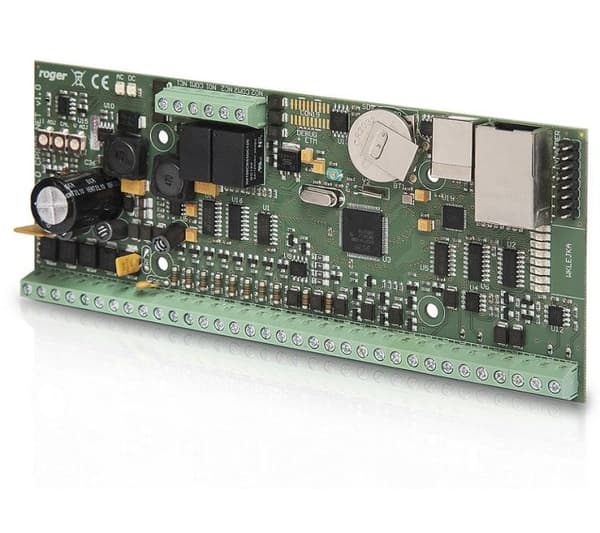

ROGER CPR32-NET-BRD ACCESS CONTROL PANEL. Inputs: 8 ; Outputs: 6 ; Event memory: Records up to 240,000 events from the control panel ; Selected features: Ability to unblock or block a zone at a specific time or according to an access calendar. Weight: 0.2620; Length: 230; Width: 105; Height: 80; The CPR32-NET-BRD access control panel is a component of the RACS4 access control system. The device expands the functionality of the access control system with the ability to manage the system via LAN/WAN. Furthermore, using the control panel enables centralized system management, support for a central event buffer, clock, and calendar, and the ability to link individual controllers into concurrently armed alarm zones. The control panel also enables integration with Satel Integra alarm control panels and support for up to 16 Assa Abloy Aperio wireless locks. Inputs: 8 pcs. - Inputs on the main board max. 32 Outputs: 6 pcs - Transistor outputs 2 pcs - Relay outputs NO/NC Communication: 2 x RS-485 Event memory: Events saved on a micro SD card (not included) Up to 240,000 events recorded from the control panel Output current capacity: Transistor outputs: 1 A / 15 V DC Relay outputs: 1.5 A / 30 V DC Selected features: Possibility to unblock or block a zone at a specific time or according to the access calendar, Central management of the access control system, Integration with the SATEL INTEGRA alarm system, 250,000 event history Electrical protection of all inputs, outputs and communication buses Full operation via the network Power supply: 24 V DC 12 V DC 18 V AC Battery operation: Operating temperature: 5 °C.. 40 °C Permissible relative ambient humidity: 10 %.. 95 % (no condensation)Dimensions: 175 x 81 x 50 mmWeight: 0.15 kgManufacturer / Brand: ROGERWarranty: 3 years.
