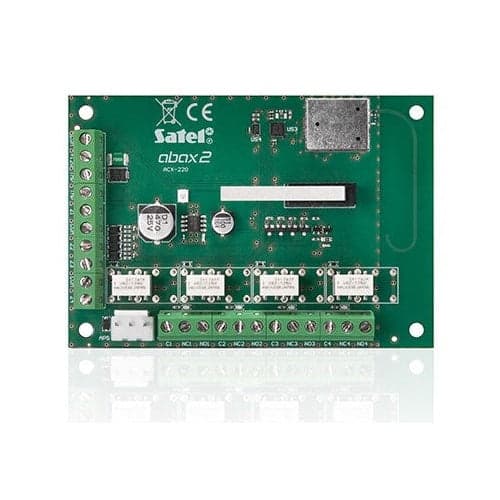

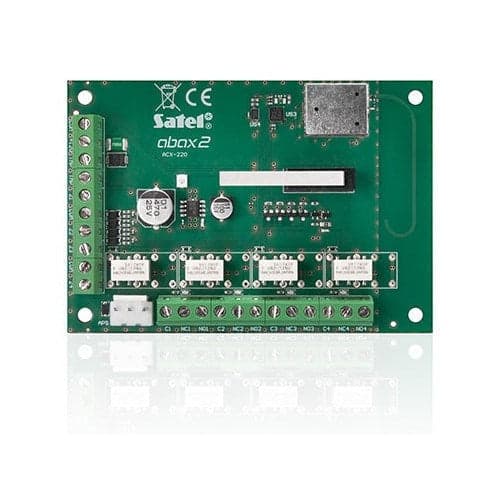

SATEL ACX-220 EXPANDER 4 ZONES, 4 OUTPUTS ABAX 2 The ACX-220 module enables the use of wired devices (including detectors and sirens) in the ABAX 2 / ABAX wireless system. It is equipped with 4 programmable inputs that support NO and NC type wired detectors and EOL, 2 EOL configurations, as well as 4 programmable relay outputs. Settings are configured and the ACX-220 firmware is updated remotely. In the ABAX 2 system, two-way radio communication is AES encrypted. The expander is powered by 12V DC and works with the following buffered power supplies: APS-412, APS-612, and APS-1412. The device has a tamper contact that responds to an attempt to open the enclosure. Features of the ACX-200 expander include connecting wired devices to the ABAX 2 or ABAX system. compatibility with. ABAX 2 system controllers (ACU-220 and ACU-280) and the ARU-200 repeater; ABAX system controllers (ACU-120, ACU-270, ACU-250 and ACU-100 (version 4.04 or higher)), the INTEGRA 128-WRL control panel and the ARU-100 repeater - the required device software version should be checked in its description on the website; radio communication range in open space. in ABAX 2: up to 2000 m (with ACU-220) / up to 1600 m (with ACU-280); in ABAX: up to 500 m; 4 programmable inputs - support for wired detectors in NO, NC, EOL, 2EOL/NO and 2EOL/NC configurations. 4 programmable relay outputs. Remote configuration and software updating. sabotage protection. power supply: 12 V DC, cooperation with APS-412, APS-612, APS-1412 power supplies. Technical data Supply voltage (15%): 12 V DC ; Housing dimensions: 126 x 158 x 32 mm ; Operating temperature range: -10 °C..+55 °C; Standby current consumption: 35 mA ; Maximum current consumption: 120 mA ; Weight: 204 g ; Maximum humidity: 93.3%; Operating frequency band: 868.0 868.6 MHz ; Environmental class according to EN50130-5: II; Compliant standards: EN 50130-4, EN 50130-5, EN 50131-1, EN 50131-3, EN 50131-5-3; Security grade according to EN50131-3: Grade 2; Radio communication range (in open area) for ACU-120: up to 500 m ; Radio communication range (in open area) for ACU-270: up to 500 m ; Relay outputs (resistive load): 1000 mA / 24 VDC; Radio communication range (in open area) for ACU-220: up to 2000 m ; Radio communication range (in open area) for ACU-280: up to 1600 m ; Manufacturer's code: ACX-220 .
