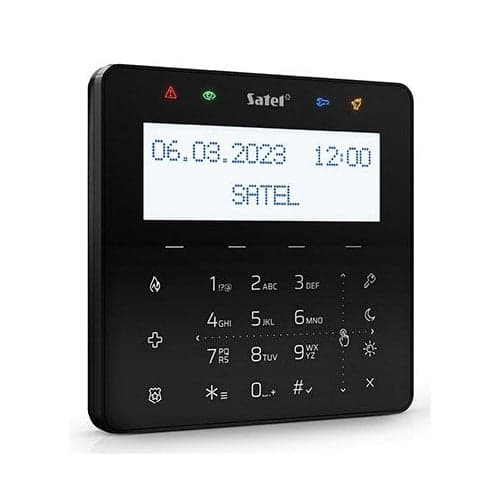

Satel INT-KSG2R-B KEYPAD with TOUCHSCREEN KEYPAD. The set includes: Satel INT-KSG2R-B keypad (housing color: black) - 1 pc. The Satel INT-KSG2R-B KEYPAD (housing color: black) enables easy and efficient operation of advanced alarm and home automation systems using the capabilities of the INTEGRA series control panels (software version 1.21 or newer) and Perfecta 64 M. It features a large graphical display with backlight and a touch keypad operated using gestures also used in smartphones (tap and hold, tap and swipe up/down/right/left). The built-in Mifare proximity card reader (supported in the Integra system) allows for operation via a proximity key fob/card. LEDs indicate the system status, and a piezoelectric transducer provides an audible indication. The panel is also equipped with 2 programmable wired inputs (Integra system) enabling support for NO/NC, roller shutter, and shock detectors, as well as EOL/2EOL/3OEL configuration (applies to Integra Plus). The device can be connected to the RS-485 bus (software update available). The keypad is protected against tampering with the enclosure and against removal from the mounting surface. PRODUCT FEATURES: . large, easy-to-read graphic display with backlight; backlit, touch keypad for easy operation in unlit rooms: 12 keys (labeled according to the telephone standard, intended for data entry), 4 function keys (INTEGRA: function selection; PERFECTA 64 M: arming/disarming), 3 alarm keys (fire/medical call/panic), 4 macro command keys, swipe gesture support (menu navigation); configurable screensaver with the ability to display the clock, date, statuses of system components (partitions, inputs, outputs), and temperatures; alarm system control using macro commands that trigger a number of various functions in the control panel (including building automation); LEDs indicating the system status; built-in MIFARE proximity card reader (supported in the INTEGRA system) for future applications; audible signalling of selected system events (built-in piezoelectric transducer); compatibility with INTEGRA and INTEGRA Plus control panels (INTEGRA Firmware 1.21 or newer) and the PERFECTA 64 M control panel; 2 programmable wired inputs (supported in the INTEGRA system): support for NO and NC type detectors as well as roller shutter and shock detectors, support for EOL, 2EOL and 3EOL configurations (3EOL in the case of INTEGRA Plus control panels), programmable value of EOL resistors; ability to connect to the RS-485 bus (firmware update via the bus); color: black, also available in white (INT-KSG2R-W); sabotage protection against opening the housing and against removal from the surface; TECHNICAL SPECIFICATIONS: . environmental class according to EN50130-5: II; security level according to EN 50131: Grade 2; operating temperature: -10°C ...+55°C; maximum humidity: 93% (3%); supply voltage: 12V DC (15%); current consumption: 135 mA (in standby mode), 155 mA (max.); housing dimensions: 132 x 129 x 17 mm; weight: 224 g; .
