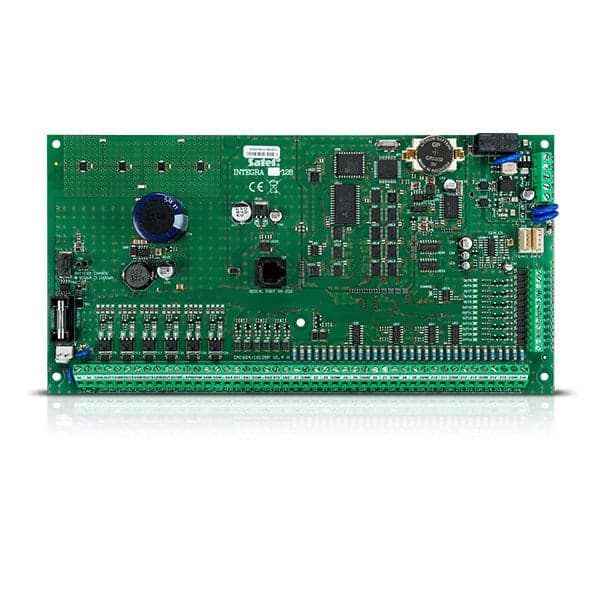

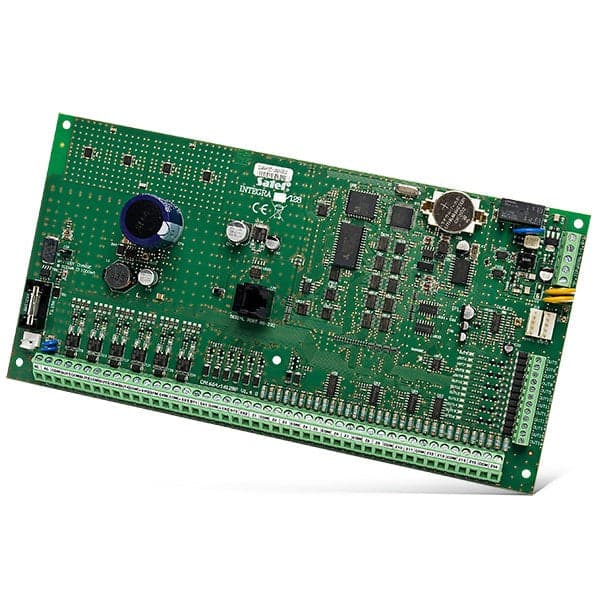

Satel INTEGRA 128 Alarm Control Panel. The kit includes: Satel INTEGRA 128 motherboard - 1 pc.; accessories (mounting pins, resistors, battery, battery cable). Installation and operating instructions are available for download in the "Additional Information" section at the bottom of the page. The Satel INTEGRA 128 control panel supports 16 to 128 zones. It has a built-in telephone communicator with monitoring, messaging, and remote control functions. The system can be operated via LCD keypads, partition keypads, keyfobs, and proximity cards, as well as remotely using a computer or mobile phone. The wired INTEGRA alarm kit is an advanced solution combining alarm functions with the ability to implement home automation and access control systems. Thanks to a wide range of expansion modules, their capabilities can be tailored to current needs, from small systems to large installations. A major advantage of INTEGRA control panels is their communication capabilities when combined with additional GSM and TCP/IP modules. Product features: support for 16 to 128 zones; ability to divide the system into 32 partitions, 8 objects; support for 16 to 128 programmable outputs; communication buses for connecting keypads and expansion modules; built-in telephone communicator with monitoring, voice messaging and remote control functions; system operation using LCD keypads, partition keypads, keyfobs and proximity cards, as well as remotely using a computer or mobile phone; 64 independent timers for automatic control; access control and home automation functions; memory for 22,527 events with a print function; support for up to 240+8+1 users; RS-232 port - RJ socket; ability to update the software via a computer; built-in 3 A switching power supply with battery charging and diagnostics functions; option to not report SATEL server failure to the control panel (INTEGRA Firmware 1.16 or newer); Technical specifications: . programmable wired zones: 16; maximum number of programmable zones: 128; programmable wired outputs: 16; maximum number of programmable outputs: 128; power outputs: 2; communication buses: 1+2; keypads: up to 8; expanders: up to 64; partitions: 8; partitions: 32; telephone numbers for notification: 16; voice messages: 32; text messages: 64; users + administrators: 240 + 8; timers: 64; event memory: 22527; high-current programmable outputs load capacity: 3A; low-current programmable outputs load capacity: 50 mA; +KPD output load capacity: 2.5A; +EX (+EX1 and +EX2) output load capacity: 2.5A; security grade according to EN 50131: Grade 2; environmental class according to EN50130-5 II; operating temperature: -10...+55 °C; max. humidity: 933%; supply voltage: 20V AC (15%), 50-60 Hz; recommended transformer: 60 VA; current consumption: 149 mA (in standby mode), 337 mA (max.); battery failure signal voltage: 11V (10%); battery cut-off voltage: 10.5V (10%); battery charging current: 500/1000 mA; power supply current efficiency: 3 A; power supply output voltage: 10.5...14 V DC; electronics board dimensions: 264 x 134 mm; weight (with housing and accessories): 341 g; .
