Lämplig placering

Kretsuppsättning

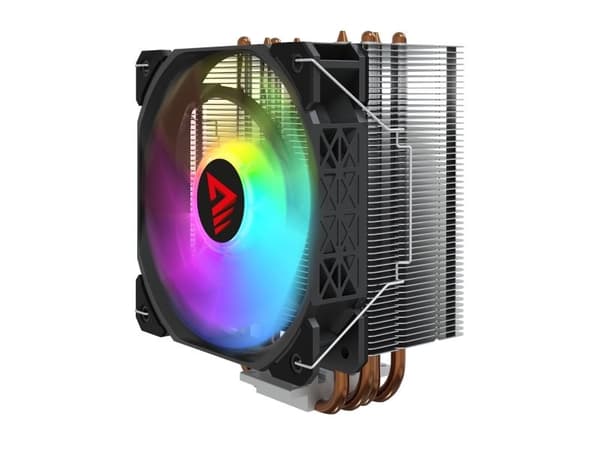

Modell

Luftkylare

Fläktdiameter

12 cm

Antal per förpackning

1 styck

Kompatibla produkter

• Intel compatibility: LGA 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 1700 / 2011 / 2066 • AMD compatibility: AM3(+) / AM2(+) / FM2(+) / FM1 / AM4 / AM5

Produktens färg

Svart

Antal fläktar

1 fläkt/-ar

Certifiering

This symbol indicates that electrical appliances should not be discarded with other household waste. Used equipment should be handed over to a local collection point for this type of waste or to a recycling center. Please contact your local authorities for information about disposal methods available in your area. Waste electrical equipment may contain hazardous substances (e.g. mercury, lead, cadmium, chromium, phthaltes) which can get into air, soil and groundwater when leaking from used appliances. Environmental pollution with these substances leads to their bioaccumulation, causing lesion of disease in living organisms, which would pose a risk to human and animal health or life. Households may contribute to environmental protecion by proper waste collection. In such way, hazardous substances from the equipment are neutralized and valuable secondary raw materials are reused for production of new equipment.

Vikt

713 g

Kabellängd

0 m

Förpackningens bredd

135 mm

Låddjup

115 mm

Förpackningens höjd

185 mm

Vikt inkl. förpackning

816 g

Tekniska egenskaper

Technical specifi cation: • TDP: 180 W • Cooler dimensions with fan: 122 × 76.5 × 157 mm • Number of heat pipes: 4 pcs • Fan size: 120 mm • LED connector: 3-pin (female) • Fan connector: 4-pin (PWM) (male + female) • Fan speed: 800-1800 RPM • Max. noise level: 31 dBA • Intel compatibility: LGA 1200 / 1151 / 1150 / 1155 / 1156 / 1366 / 1700 / 2011 / 2066 • AMD compatibility: AM3(+) / AM2(+) / FM2(+) / FM1 / AM4 / AM5

Garantiperiod

2 År

Certifikat för överensstämmelse

CE

Säkerhetsvarning

Safety conditions for thermal grease • Keep out of reach of children. • It is forbidden to consume the product. • In case of skin contact, the contaminated area should be wash with soap and water. • In the case of contact with eyes, rinse with plenty of water. • If vapours enter the respiratory system go to fresh air. • In case of ingestion it is not necessary to induce vomiting. Rinse your mouth with plenty of water. • In the case of any undesirable symptoms during the situations described above, seek urgent medical attention. Safety conditions for heat sink and fan • Use the product in accordance with its intended use, as improper use may damage the product. • Do not expose the device to moisture. • The device should be cleaned only with a dry cloth. • Independent repairs and modifi cation result automatic loss of the warranty. • Hitting or dropping may damage the product

WEEE-efterlevnad (avfall som utgörs av eller innehåller elektriska eller elektroniska produkter)

Ja

Produkt- eller artikelinformationsblad tillgängligt?

Ja

Förpackningstyp

Låda

Monteringssats

Nej

Skruvar medföljer

Ja

Antal skruvar

4

Termisk platta inkluderad

Nej

Fjärrkontroll ingår

Nej

Installationsanvisningar

Ja
