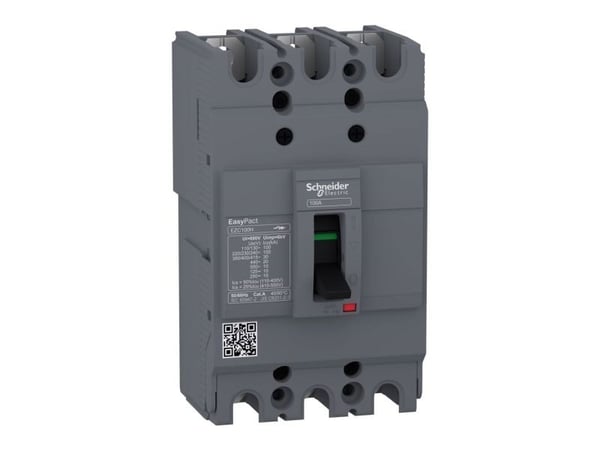

Name: Schneider Electric EZC100H3016 effektbrytare 1 st
SKU: 20613362
Price: 2356 SEK
Availability: InStock

Schneider Electric EZC100H3016 effektbrytare 1 st | SKU: EZC100H3016 | Brand: SCHNEIDER ELECTRIC | EAN: 3303431120291<br>

color

Strömtillförsel

The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).

Ingående ström

The frequency (Hz) which is required to power the product.

Ingångsfrekvens

The maximum amount of electric current the device is designed to carry continuously under specified conditions, measured in amperes.

Uppskattad strömförbrukning

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Uppmätt spänning

Egenskaper

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Typ av effektbrytare

The maximum fault current that the device can safely interrupt without sustaining permanent damage, measured in A.

Brytförmåga

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Poltal

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

The colour e.g. red, blue, green, black, white.

Produktens färg

Specifies the official standards, safety approvals, or regulatory certifications the product has received.

Certifiering

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Djup

Höjd

Förpackning

The number of individual units contained within a single sales package, measured in pc(s).

Schneider Electric EZC100H3016 effektbrytare 1 st

2 356 kr

2 356 kr

Produktbeskrivning

Schneider Electric EZC100H3016 effektbrytare 1 st

2 356 kr

2 356 kr

Strömtillförsel
Ingående ström	16 A
Ingångsfrekvens	50/60 hz
Uppskattad strömförbrukning	16 A
Uppmätt spänning	550 V

Egenskaper
Typ av effektbrytare	Isolerkapslad effektbrytare
Brytförmåga	100000 A
Poltal	3P
Internationellt skydd (IP) kod	IP20
Produktens färg	Grå
Certifiering	EN/IEC 60947-1 \| EN/IEC 60947-2 \| GB/T 14048,2 \| JIS C8201-2-2

Miljökrav
Temperatur vid drift	-25 - 70 ° C
Temperaturintervall (förvaring)	-35 - 85 ° C

Vikt & dimension
Bredd	75 mm
Djup	60 mm
Höjd	130 mm

Förpackning
Antal per förpackning	1 styck
