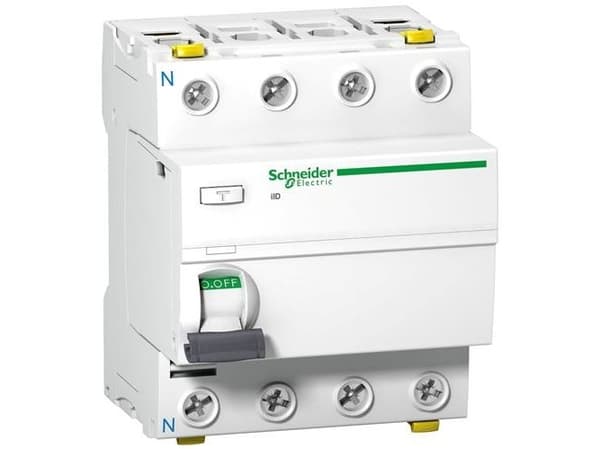

Name: Schneider Electric iID, IP20
SKU: 10437400
Price: 1201 SEK
Availability: InStock

Schneider Electric iID, IP20 | SKU: 3606480443213 | Brand: SCHNEIDER ELECTRIC | EAN: 3606480443213<br>

color

weight

Strömtillförsel

The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).

Ingående ström

The frequency (Hz) which is required to power the product.

Ingångsfrekvens

The threshold current at which the device detects a leakage to earth and triggers a disconnection, measured in mA.

Känslighet för läckström

Egenskaper

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Poltal

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

The colour e.g. red, blue, green, black, white.

Produktens färg

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Djup

Höjd

Produktens vikt utan förpackning (nettovikt). Om möjligt nettovikten är angett inklusive standardtillbehör och förråd.Obs, ibland anger tillverkaren en för kommersiell interpretation av produktvikten, där han lämnar ut vikten av tillbehör och/eller förråd.

Vikt

Förpackning

The number of individual units contained within a single sales package, measured in pc(s).

Strömtillförsel
Ingående ström	40 A
Ingångsfrekvens	50/60 hz
Känslighet för läckström	100 mA

Egenskaper
Poltal	4P
Internationellt skydd (IP) kod	IP20
Produktens färg	Vit

Miljökrav
Temperatur vid drift	-25 - 60 ° C
Temperaturintervall (förvaring)	-40 - 85 ° C

Vikt & dimension
Bredd	72 mm
Djup	73 mm
Höjd	91 mm
Vikt	370 g

Förpackning
Antal per förpackning	1 styck
Förpackningens bredd	100 mm
Låddjup	85 mm
Förpackningens höjd	75 mm
Vikt inkl. förpackning	381,47 g
