• Improved battery safety: protects against overcharging, discharging and short circuits, ensuring battery life and efficiency.
• Smart connectivity: easily connect and monitor your battery status via an app on both Android and iOS devices for real-time insights.
• Wide compatibility: designed to support multiple battery types, making it suitable for various applications including energy storage and electric vehicles.
• Active balancing technology: maintains equal charge levels across all cells, improving battery performance and lifespan.
• User-friendly installation: simple installation process with clear instructions and an easy-to-use interface on the mobile app.

Specification:

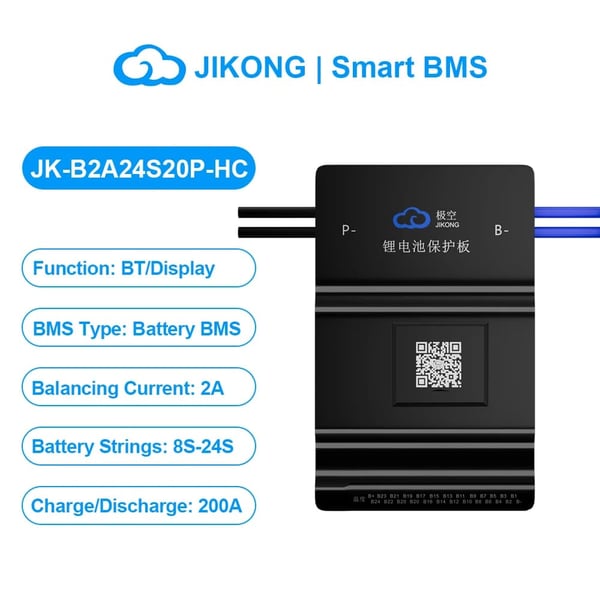

• Type: Battery Management System
• Dimensions: 162 x 102 x 20 mm
• Compatibility: Supports Li-ion, LiFePO4, LTO battery types
• Battery configuration: Supports 8S to 24S battery strings
• Charging current: 200A
• Balance current: 2A
• Functionality: Overload protection, deep discharge protection, overcurrent protection, short circuit protection
• Connectivity: Bluetooth, RS485
• Temperature sensor: Yes

• JK-B2A24S20P
• 24S
