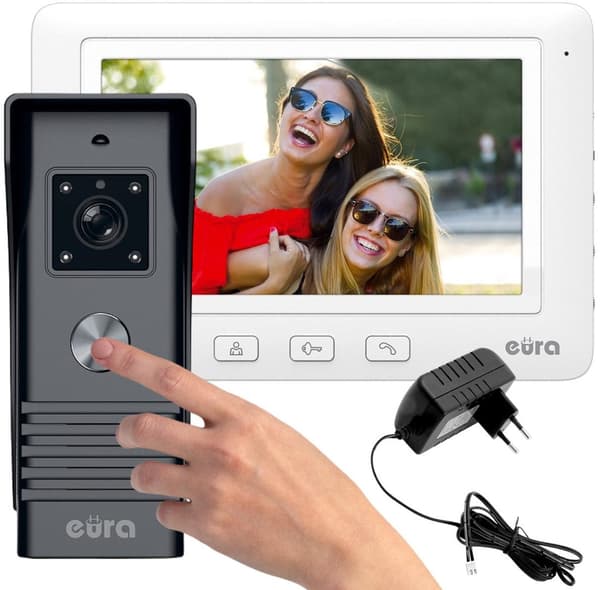

SINGLE-FAMILY VIDEO DOOR PHONE EURA VDP-45A3 "EURA" VDP-45A3 ALPHA VIDEO DOOR PHONE electric strike release at the gate. 16 ringtone melodies to choose from. Adjustable image parameters. Weather-resistant case with a roof. White lighting around the camera. VZA-63A3 power supply included. CONSUMER QUALITY LEADER 2023 In 2023, "Eura" brand video intercoms were awarded the golden Consumer Quality Leader emblem in the "Video intercoms and intercoms" category. "EURA" VDA-45A3 MONITOR Power supply voltage: 12 V DC ; Video signal parameters: 1Vp-p 75 Ohm CCIR ; Number of connecting wires: 4 ; Number of supported premises: 1 ; Number of supported outputs: 1 ; Monitor power consumption - standby / on: 2 W / 7 W ; Monitor screen size: 7 ; Screen type: Color TFT-LCD ; Screen resolution: 800480 pixels ; Number of chime melodies: 16 ; Hands-free: Yes ; Monitor operating temperature range: 0oC +40oC ; Monitor dimensions (H x W x D): 141 x 209 x 19 mm ; Monitor net weight: 400 g ; EXTERNAL CASSETTE - VDA-78A3 Output voltage for the electromagnetic lock: 12 V DC ; External cassette power consumption (standby / on): 0.2 W / 5 W ; Image resolution: 700 TVL ; Horizontal camera viewing angle: 50o ; Camera sensor type: Color CMOS 1/4'' ; Lock activation time: 3 5 s ; Housing material: Plastic ; Outdoor station mounting method: Surface-mounted ; Night lighting: 4 LEDs - white light ; Protective roof: Yes ; Protection factor: IP44 ; Outdoor station operating temperature range: -15oC +50oC ; Outdoor station dimensions (H x W x D): 127 x 51 x 47 mm ; Net station weight: 185 g ; NOTE! . THE SET INCLUDES A VZA-63A3 POWER SUPPLY ADAPTER . CONNECTING DIAGRAM LEGEND A . DC 12V power supply (up to 15m 1A, above 15 m a more powerful power supply is required). B . Outdoor station. C . Electric strike. D . Monitor. DEVICE FEATURES: The VDP-45A3 ALPHA single-family video intercom is the ideal solution for users seeking simple, high-quality solutions. The device allows for communication with visitors, viewing the camera's surroundings, and controlling the lock at the entrance to the property. The hands-free monitor is equipped with control knobs for adjusting the conversation volume, brightness, and image saturation. Using the button located above them, the user can select one of 16 available chime melodies, and by moving the switch, change the volume. The outdoor unit, equipped with a protective canopy and rated IP44, ensures proper operation of the video intercom even in challenging weather conditions. The high-quality camera provides excellent image quality, even at night, thanks to 4 LEDs that allow viewing the outdoor unit's surroundings in low light conditions. FREQUENTLY ASKED QUESTIONS: 1. What cable should I use to connect the monitor to the outdoor unit? When designing the electrical installation, consider the appropriate cable gauge. up to 30m - recommended cable XzTKMXpw 4x2 x 0.5mm2; up to 50m - recommended cable XzTKMXpw 4x2 x 0.8mm2; 2. What cable should I use to connect the external panel to the bolt (electric strike)? The cable connecting the electric strike to the external box should be at least 2x1mm2. 3. Can the external panel be exposed to rain and snow? Yes, the device has a high water resistance coefficient IP44, so it can be exposed to weather conditions. 4. Can I use a DIN rail power supply? Yes, the recommended power supply should have a voltage of DC 12V and a power of not less than 2.5A. 5. Does the electric strike require additional power supply? Yes.
