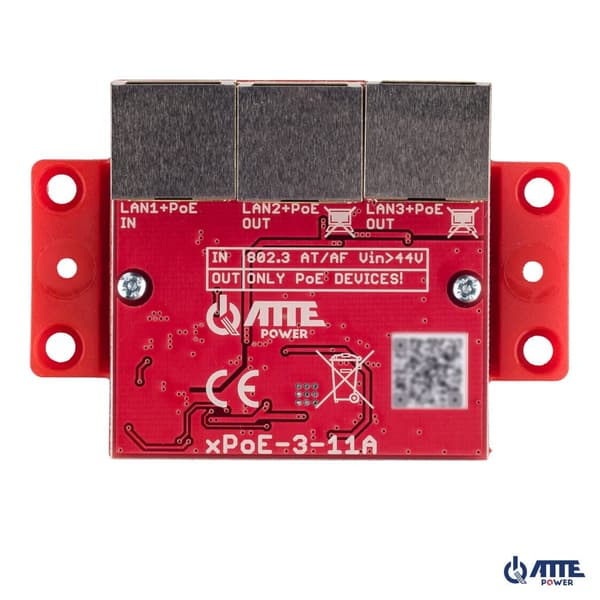

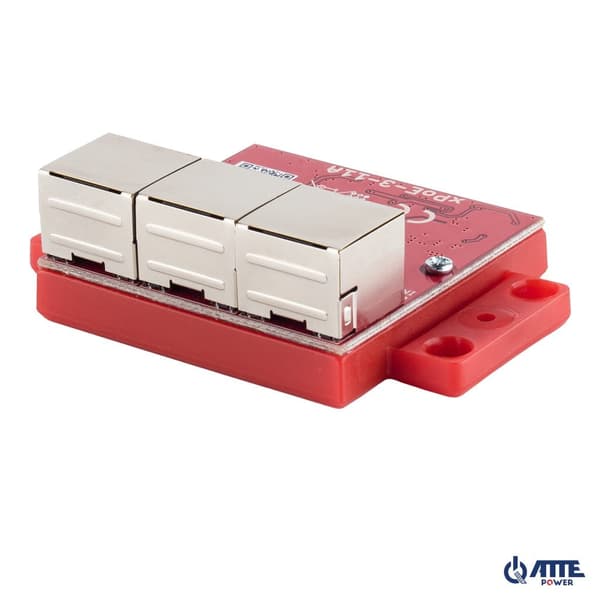

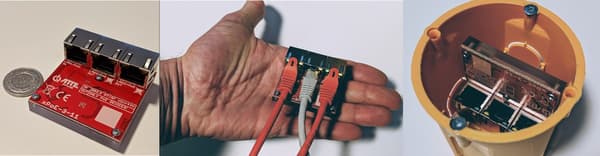

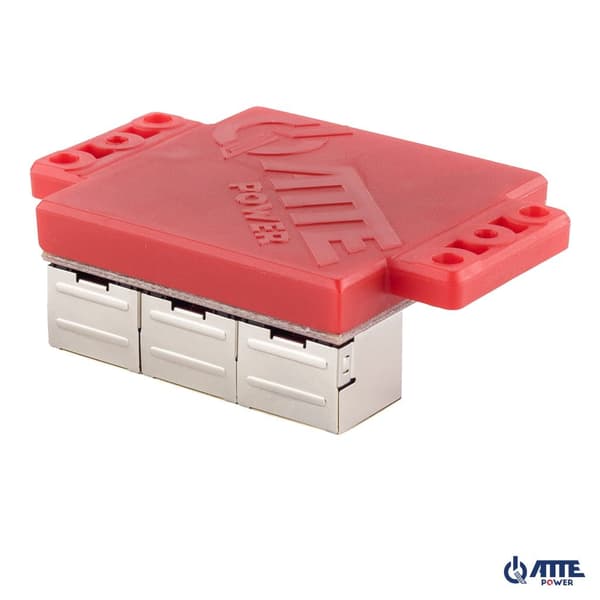

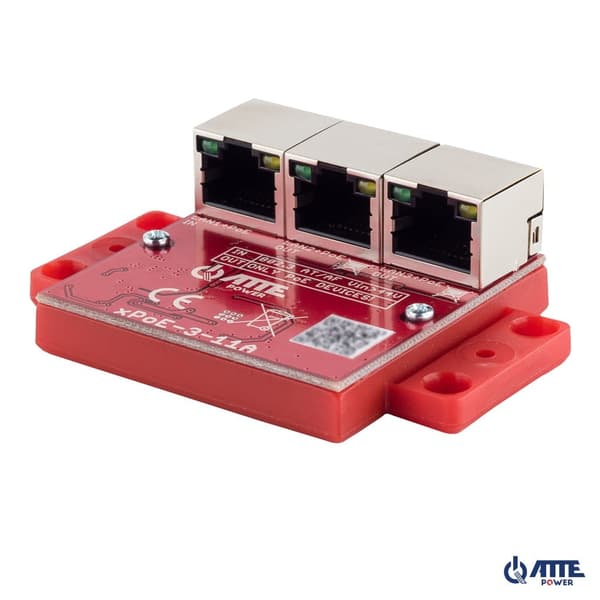

3-Port PoE Repeater/Switch xPoE-3-11A Description: The xPoE-3-11A is an unmanaged PoE network switch that works as a LAN extender (repeater) and PoE power supply. The device regenerates the network signal and transfers PoE power to selected outputs. It is most often used as an "amplifier" to extend networks over distances longer than 100m. It is also ideal as an "active splitter" in situations where multiple PoE receivers (e.g., several IP cameras) need to be run on a single UTP cable, or when an additional network branch is necessary. Unmanaged PoE switches without a power supply from the xPoE series are designed for use with IP cameras and other network devices powered by the 802.3at/af and PoE PASSIVE standards. The device's very small size allows for easy installation in small spaces. & xa0. Example applications. Basic use of the device - when we need to install another IP camera on a single twisted-pair UTP cable in place of an existing one or to branch the network and PoE power to another point. Specifications LAN ports: 3 RJ45 10/100Mbps ports (auto MDI-MDIX, auto-negotiation). PoE input: . LAN 1:; PoE INPUT (switch powering): PASSIVE (up to 50W) or 802.3af (up to 15.4W) or 802.3at (up to 30W); PoE output: . LAN 2:; PoE OUTPUT (powering PoE receivers): PASSIVE (up to 50W), 802.3af (up to 15.4W), 802.3at (up to 30W); PoE PINS: 1.2 (V-) 3.6 (V+) and 4.5 (V+) 7.8 (V-); LAN 3:; PoE OUTPUT (powering PoE receivers): PASSIVE (up to 50W), 802.3af (up to 15.4W), 802.3at (up to 30W); PoE PINS: 4.5 (V+) 7.8 (V-); PoE standard selection (at/af): LAN1 (PoE IN): automatic, default 802.3at if supported by the power switch. Supply voltage: . Vout Vin; Note!; For 802.3at/af PoE receivers Vin 44VDC; Power consumption: 0.8W. Port protections: . LAN 1.. LAN 3:; Overvoltage protection; LAN 1:; Overload protection 1A with auto return; Operation indication: . LED in RJ45 connectors:; LAN 1.. LAN 3 (yellow) - presence of PoE power on LAN 1.. LAN 3 port; LAN 1.. LAN 3 (green) - link and data transmission on LAN 1.. LAN 3 port; Housing construction: Polycarbonate. Operating temperature: -25°C 65°C. Protection rating: IP20. Dimensions: 51x51x23mm (width/length/height). Weight: 0.042kg.
