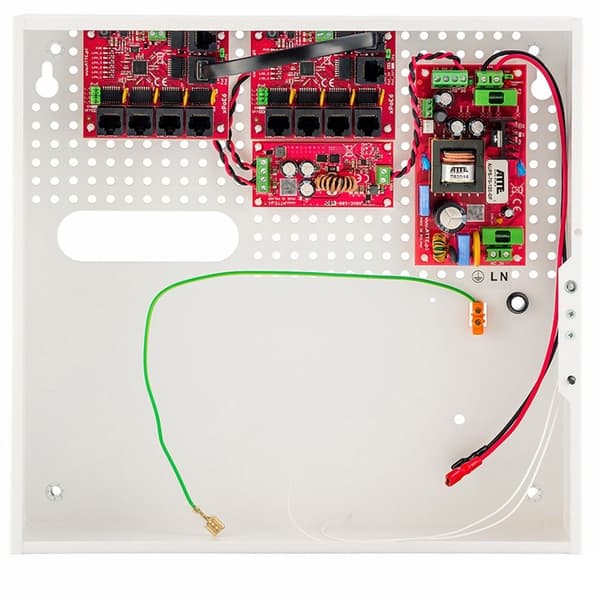

9-port PoE Switch + 1 RJ45 (IPUPS-9-11-F) Description The IPUPS-9-11-F is a modern PoE switch designed for IP CCTV systems. The device operates in 10/100 Base-T Ethernet networks and allows you to connect and power up to 9 PoE IP cameras. The module guarantees high stability of the signal transmitted from the cameras and its continuous transmission. The IPUPS-9-11-F industrial switch operates based on automated systems for recognizing, adjusting, and managing active connections, as well as ensuring the highest level of performance with very low power consumption. Furthermore, installation and use of the switch are very simple and will not pose a problem for every user. Power to the PoE ports is transmitted directly using screw terminals or the LAN+PoE IN port. Protection. Each PoE channel in the IPUPS-9-11-F module is independently protected by a polymer fuse. Unlike traditional fuses, polymer fuses do not cut off the supply voltage but only limit the current drawn by the system they protect. When the rated current flowing through the polymer fuse is exceeded, its resistance rapidly increases, thus limiting the current drawn by the protected system. Application: The IPUPS 911E switch is perfect for creating and expanding the network in which our CCTV system operates. Thanks to the IP20 metal housing, the electronics are protected from external factors. & xa0. Specifications Ports: . 9x RJ45 PoE ports (10/100Mbps); 1x RJ45 UpLink port (10/100Mbps); Operating modes: . Standard:; LAN 1 LAN 6 range 100m (10/100Mbps); Long Range:; LAN 1 LAN 4 range 280m (10Mbps); LAN 5 LAN 6 range 100m (10/100Mbps); Power supply type: buffered. Output power: 72W. Efficiency: 90% 60W. Input voltage range: 180-240V AC. Power supply output voltage: 12V +/- 15%. Camera power output voltage: 48V +/- 2%. PoE output short circuit protection: . Electronic fuse; LAN 1 LAN 4 - 0.75A; LAN 5 - 1.2A; Power supply output short circuit protection: Electronic protection, after a short circuit a restart of the power supply is required. Used battery capacity: 18Ah. Battery charging current: 1A or 2A selected by jumper JP1. Battery circuit protection: F6.3A fuse F2. Battery protection: Battery disconnection at voltage below 10.2V. Operating temperature range: -10°C 40°C. Housing: Metal, white. Mounting: 6mm mounting holes. Protection class: IP20. Dimensions (W/L/H): 300x320x90mm.
