Case Dimension (WxHxD): 240 x 580 x 560mm / 9.5 x 22.8 x 22.0 in

Form Factor:                 Full Tower

Materials:                    Steel Chassis

Motherboard Support:    SSI-EEB, E-ATX, ATX, micro-ATX, mini-ITX

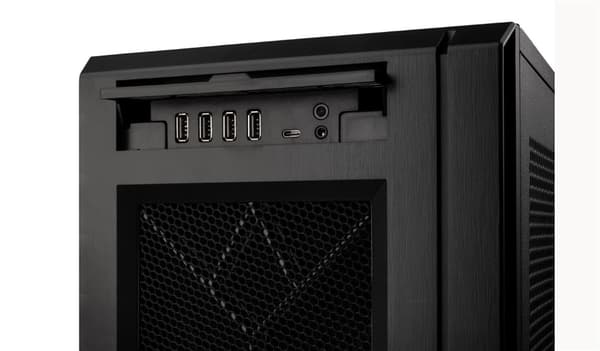

Front IO:                       USB-C GEN 2, 4x USB 3.0, Microphone/Headphone, Reset Button, Power Button, LED Mode Button, LED Color Button

Connectors:                   Power Switch, Reset Switch, HD-audio, Power-LED (12V Sata), HDD-LED, USB 3.0, USB 3.1 GEN 2, D-RGB Expansion, D-RGB MB Adapter

Side Window:               Tempered Glass Window

PCI Slots:                      8

Vertical GPU:               Yes, with optional Vertical GPU Bracket

Internal 3.5” bay:        12 (4x included, also supports 2.5” drives)

Internal 2.5” bay:        11 (11x included)

Total Fan Mounts:      15 x 120 mm / 8 x 140 mm

Front Fan:                    4 x 120 mm / 3 x140 mm

Top Fan:                         3 x 120 mm / 3 x 140 mm

Rear Fan:                       1 x 120 mm / 1 x 140 mm

Bottom:                          3 x 120 mm/ 1 x 140 mm

Side:                               4 x 120 mm

Front Radiator:             up to 480 mm / up to 420 mm

Top Radiator:                 up to 360 mm

Rear Radiator:                120 mm / 140 mm

Bottom:                        up to 360 mm

Side:                             up to 480 mm

GPU Length:                  503 mm / 19.8 in

CPU Cooler Height:         195 mm / 7.7 in

Motherboard Width:        Max 305 x 330 mm (SSI-EEB)

Side Radiator:               Max 134 x 525 x 35 mm (on the right side of chassis)

Cable Management:       Velcro Straps / Zip Tie Locations
