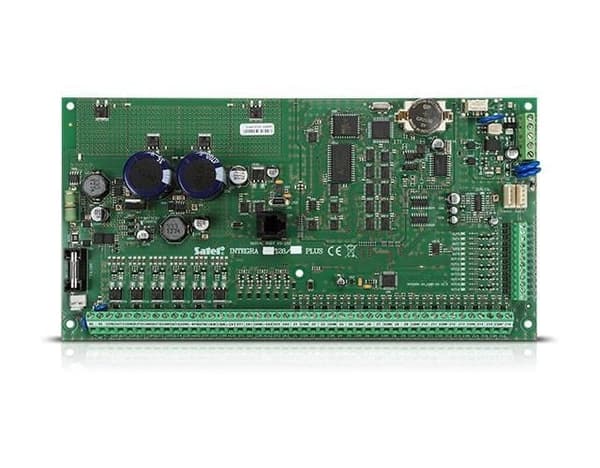

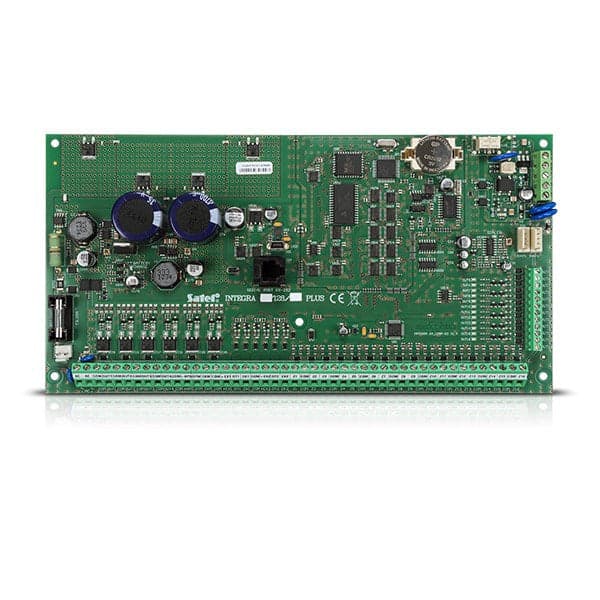

SATEL INTEGRA 128-PLUS Alarm Control Panel (from 16 to 128 zones and outputs, meeting GRADE-3 requirements). Thanks to full compliance with EN50131 Grade 3 requirements, the INTEGRA 128-PLUS series control panels are ideal for implementing advanced security systems in facilities with a particularly high risk of burglary, e.g. banks, jewelry stores or public buildings. These control panels offer extensive functionality, allowing them to be used to implement access control systems or even intelligent building systems. FEATURES. full compliance with EN50131 series standards for Grade 3 devices; built-in advanced 2A+1.5A power supply with extensive diagnostics; support for up to 128 zones with programmable parametric resistance and support for 3EOL lines (mainboard inputs only); USB port for programming via PC; ability to divide the system into 32 partitions and 8 objects; expandable to 128 programmable outputs; communication buses for connecting keypads and expansion modules; built-in telephone communicator with monitoring, voice messaging and remote control functions; system operation via LCD keypads, partition keypads, remote controls and proximity cards, as well as remotely using a computer or mobile phone; 64 independent timers for automatic control; access control and home automation functions; memory for 22,527 events with a print function; support for up to 240+8+1 users; software update possible via computer; Technical data. Voice messages: 32; Low-current programmable outputs load capacity: 50 mA; High-current programmable outputs load capacity (10%): 300 mA; Event memory: 22,527; Partitions: 8; Zones: 32; Timers: 64; Electronics board dimensions: 264 x 134 mm; Operating temperature range: -10...+55 °C; Supply voltage (15%): 20 V AC, 50-60 Hz; Weight: 320 g; Maximum humidity: 93.3%; Standby battery current consumption: 130 mA; Recommended transformer type: 75 VA; Battery failure reporting voltage (10%): 11 V; Battery cut-off voltage (10%): 10.5 V; Environmental class according to EN50130-5: II; Standby current consumption from 230 V mains: 135 mA; Maximum current consumption from 230 V mains: 400 mA; Users + Administrators: 240 + 8; Maximum current consumption from battery: 200 mA; Maximum battery charging current: 1500 mA; Power supply current efficiency (powering devices + charging battery): 2000 + 1500 mA; Power supply output voltage: 10.5...14 V DC; +KPD output load capacity (10%): 3000 mA; +EX1 and +EX2 output load capacity (10%): 3000 mA; Programmable wired inputs: 16; Maximum number of programmable inputs: 128; Programmable wired outputs: 16; Maximum number of programmable outputs: 128; Power supply outputs: 3; Communication buses: 1 + 2; Keypads: up to 8; Expanders: up to 64; Telephone numbers for notification (voice/PAGER + SMS): 16 + 16; Installer-defined text messages: 64; Security degree according to EN 50131: Grade 3; .
