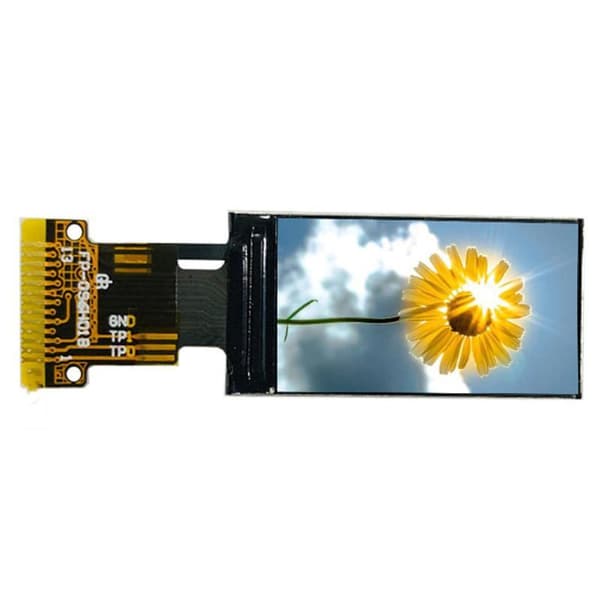

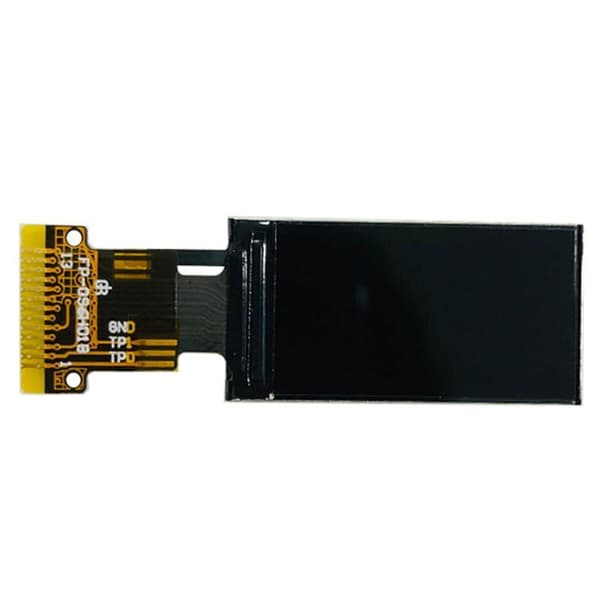

65K Färgskärm / Display / Displaymodul TFT IPS ST7735S 0.96" 4 pins 80X160

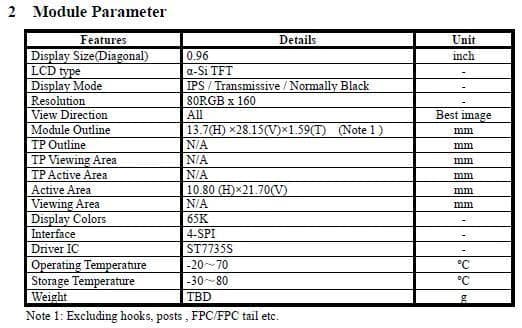

Parameters

1. LCD Size: 0.96 inches
2. Dot Matrix Size: 80*160 (Display direction can be adjusted, horizontal screen and vertical screen are ok)
3. LCD Color: 65K Full Color
4. Hardware Interface: SPI interface
5. Driver IC: ST7735
6. Operating Temperature: -20 - 70
8. Working Power Supply: 3.3V

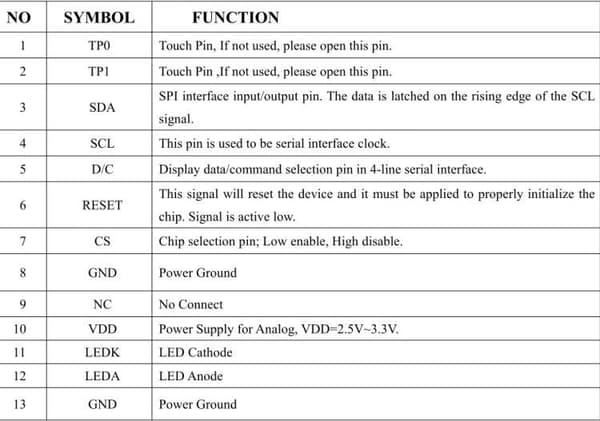

9. PIN NO.: 13 Pins

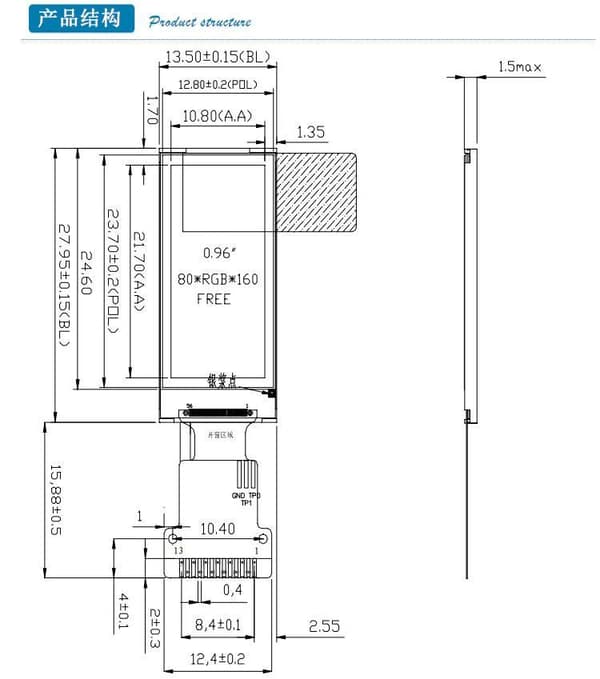

10. Display Area: 10.8*21.696mm
11. Size: 13.3*27.95mm
12 Viewing Direction: Full viewing angle (IPS)

OBS: 1 skärm

Skickas från vårt lager i Sverige.
