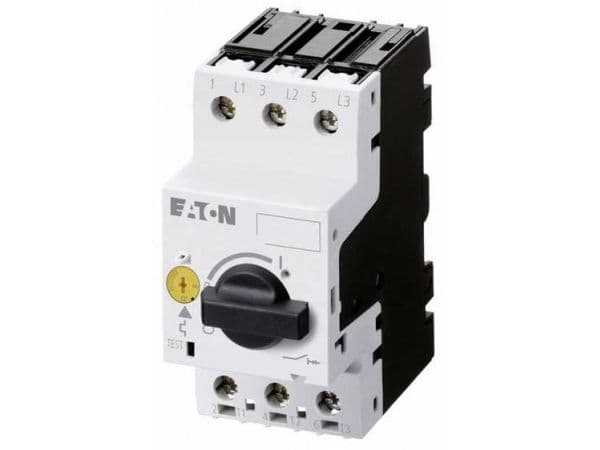

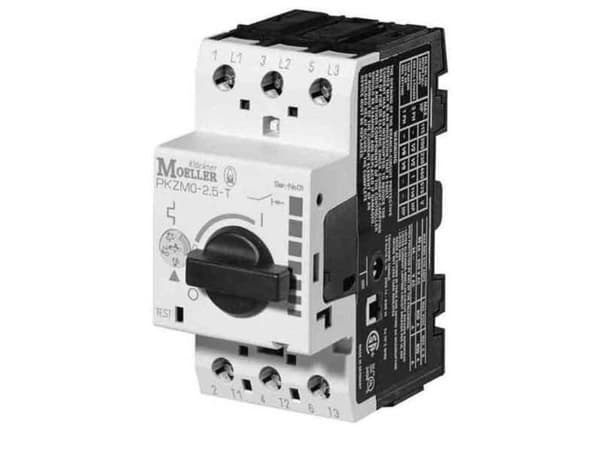

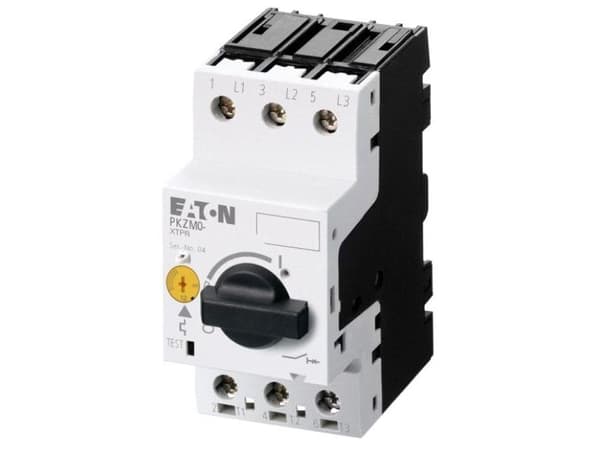

Name: Eaton transformatorbrytare PKZM0-2,5-T - 088913
SKU: 5378322
Price: 1147 SEK
Availability: InStock

Eaton transformatorbrytare PKZM0-2,5-T - 088913 | SKU: 088913 | Brand: Eaton | EAN: 4015080889137<br>

Strömtillförsel

Uppskattad strömförbrukning

Uppmätt spänning

Egenskaper

Brytförmåga

Poltal

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

Föroreningsgrad

Certifiering

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

The minimum and maximum temperatures at which the product can be safely stored.

Temperaturintervall (förvaring)

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Eaton transformatorbrytare PKZM0-2,5-T - 088913

1 147 kr

1 147 kr

Produktbeskrivning

Eaton transformatorbrytare PKZM0-2,5-T - 088913

1 147 kr

1 147 kr

Strömtillförsel
Uppskattad strömförbrukning	2,5 A
Uppmätt spänning	690 V

Egenskaper
Brytförmåga	150000 A
Poltal	3
Internationellt skydd (IP) kod	IP20
Föroreningsgrad	3
Certifiering	IEC/EN 60947, VDE 0660

Miljökrav
Temperatur vid drift	-25 - 55 ° C
Temperaturintervall (förvaring)	-40 - 80 ° C

Vikt & dimension
Bredd	45 mm
Djup	75,2 mm
Höjd	92,4 mm
