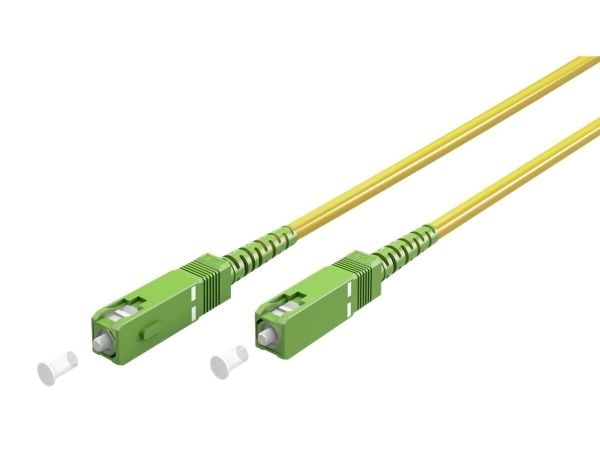

Name: Goobay 59641, 10 m, FTTH, OS2, SC, SC
SKU: 8658225
Price: 141 SEK
Availability: InStock

Goobay 59641, 10 m, FTTH, OS2, SC, SC | SKU: 59642 | Brand: Goobay | EAN: 4040849596421<br>

color

Egenskaper

Kabellängd

The standardised properties of the fiber optic cable.

Typ av fiberoptik

This is the first connector in the device.

Anslutning 1

This is the second connector in the device.

Anslutning 2

The gender of the first connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the part bearing one or which fits into another being called male.

Typ, kontakt 1

The gender of the second connector of the product. Each half of a pair of mating connectors is assigned the designation male or female, the indented one or the one fitting around the other being called female.

Typ, kontakt 2

The specific geometry and finish of the fiber optic connector end-face to minimize signal loss, such as APC or UPC.

Kontaktens poleringstyp

Typ av kabel

Produktens färg

Kärndiameter

Manteldiameter

Specifies the type of light propagation path within the core, such as Single-mode for long distances or Multi-mode for shorter reaches.

Fiberlägets struktur

The specific light frequencies, measured in nanometres, that the product is designed to transmit or receive (e.g. 1310).

Våglängder som stöds

Hastighet med vilken data kan överföras MC, uttryckt i enheter per sekund, kan variera på nätverkskonfigurationer

Dataöverföringshastighet

The amount of signal power lost as the signal passes through the device, typically measured in decibels (dB).

inkopplingsförlust

The ratio of power reflected back toward the source to the power delivered into the unit, typically measured in decibels (dB).

Returförlust

The primary material used for the outer protective layer of the product (e.g. Aluminum, Cotton, or ABS synthetics).

Jacka material

The substance used to manufacture the housing or contacts (e.g. Aluminium, Brass, or ABS).

Anslutningsdon, material

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

Vikt & dimension

The distance from one side of the cable to the other

Kabeldiameter

The minimum radius to which the product can be curved without causing structural damage or signal loss, measured in millimetres.

Böjradie

Förpackning

Förpackningstyp

Förpackningens innehåll

The number of individual units contained within a single sales package, measured in pc(s).

Goobay 59641, 10 m, FTTH, OS2, SC, SC

141 kr

141 kr

Produktbeskrivning

Goobay 59641, 10 m, FTTH, OS2, SC, SC

141 kr

141 kr

Egenskaper
Kabellängd	10 m
Typ av fiberoptik	OS2
Anslutning 1	SC
Anslutning 2	SC
Typ, kontakt 1	Hankoppling
Typ, kontakt 2	Hankoppling
Kontaktens poleringstyp	APC
Typ av kabel	FTTH
Produktens färg	Gul
Kärndiameter	9 um
Manteldiameter	125 um
Fiberlägets struktur	Enkelläge
Våglängder som stöds	1310 nm
Dataöverföringshastighet	100 Gbit/s
inkopplingsförlust	0,25 dB
Returförlust	60 dB
Jacka material	Low smoke zero halogen (LSZH)
Anslutningsdon, material	Keramiska

Miljökrav
Temperatur vid drift	-40 - 85 ° C

Vikt & dimension
Kabeldiameter	3 mm
Böjradie	3 cm

Förpackning

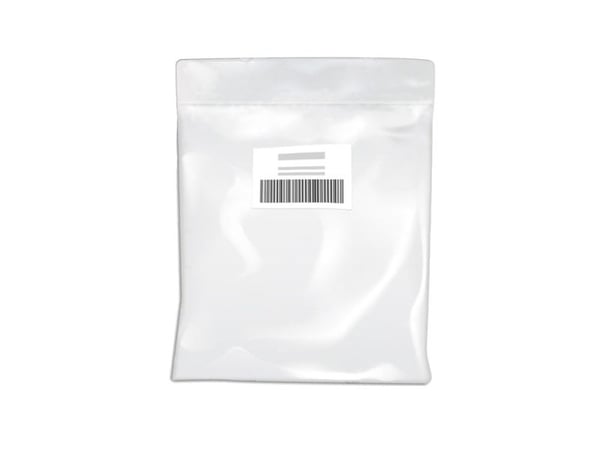

Förpackningstyp	Polypåse

Förpackningens innehåll
Antal per förpackning	1 styck

Goobay 59641, 10 m, FTTH, OS2, SC, SC

141 kr

141 kr

Produktbeskrivning

Specifikationer

Goobay 59641, 10 m, FTTH, OS2, SC, SC

141 kr

141 kr
