Designed to offer the best of two worlds. A hybrid forged between silent and high-performance chassis. Find the optimal configuration in any situation by switching between quiet or performance mode.

Designed with effective sound proofing panel and Phanteks’ new high-airflow fabric, the Eclipse P600s offers the full potential of two opposites, minimum noise and maximum airflow.

Based on the award winning Evolv X chassis interior, the Eclipse P600s comes with tons of features. Now also available in Matte White color with 3x140mm D-RGB fans included.

Case Dimension (WxHxD): 240 x 520 x 510 mm

Form Factor: Mid Tower

Materials: Sound Dampening Panels, Steel Chassis, Tempered Glass

Motherboard Support: E-ATX*, ATX, Micro-ATX, Mini ITX (E-ATX* - up to 280mm wide)

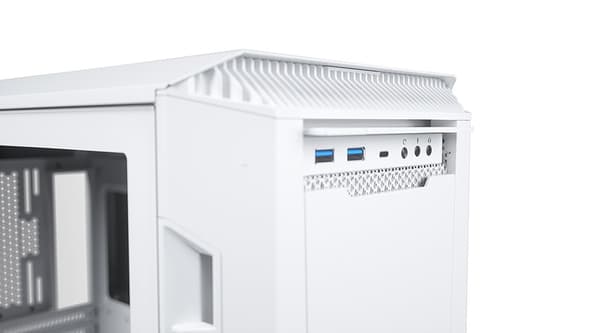

Front IO1: x USB-C Gen 2, 2x USB 3.0, Mic, Headphone, Power button, Reset button

Connectors: Power Switch, Reset Switch, USB 3.0, USB 3.2 GEN 2 Type-E, HD-audio

Side Panels: Hinged Tempered Glass

PCI Slots: 7

PCI Slots Vertical: 3

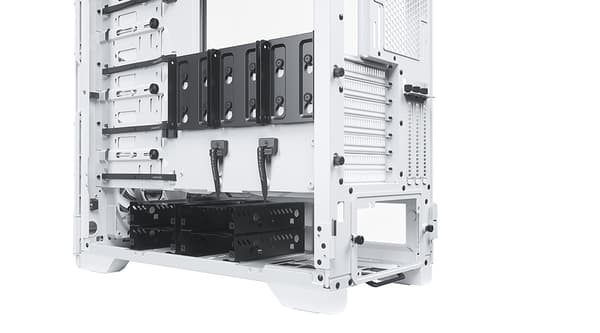

Internal 3.5”bay: 10 (4x included)

Internal 2.5”bay: 3 (3x included)

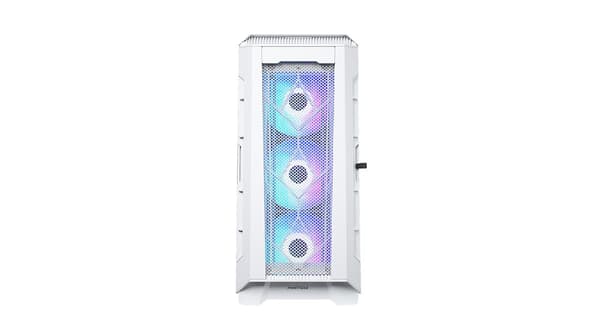

Front Fan: 3 x 120mm / 3 x 140mm (3x D-RGB installed)

Top Fan: 3 x 120mm / 2 x 140mm

Rear Fan: 1 x 120mm / 1 x 140mm

Front Radiator: up to 360 / 420

Rear Fan: up to 360 / 280

Rear Fan: up to 120 / 140

GPU Length Clearance:  435 mm / 17.2 in

CPU Cooler Height: 190 mm (7.4 in)

Front Radiator + Fan (thickness):  95 mm (3.7 in)

Top Radiator + Fan (thickness): 65 mm (2.5 in)

Motherboard: Up to 280mm wide

Net Weight13.5 kg

Scope of delivery: 3x 140mm D-RGB fan, 1x Universal Fan Hub, 4x 3.5” Stackable HDD bracket, 3x 2.5’’ SSD bracket, 1x Vertical GPU mount, 1x GPU Anti-Sag bracket, 1x Airflow cover, 1x Toolbox
