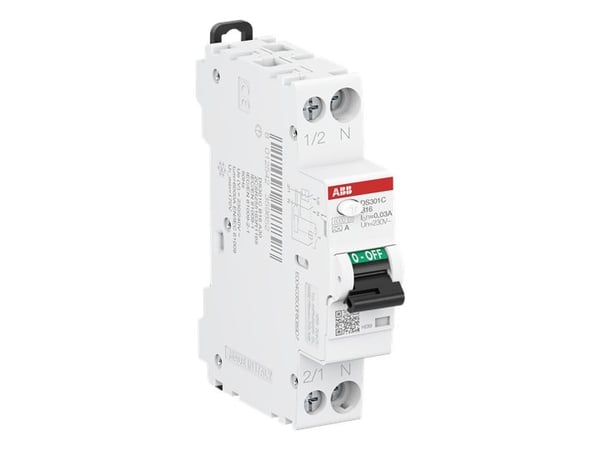

Name: ABB 2CSR255163R1165, Dvärgbrytare, IP20, IP40
SKU: 10312178
Price: 1054 SEK
Availability: InStock

ABB 2CSR255163R1165, Dvärgbrytare, IP20, IP40 | SKU: 2CSR255163R1165 | Brand: ABB | EAN: 8012542359852<br>

color

weight

Strömtillförsel

The amount of electrical current drawn by the device during operation, typically measured in amperes (A) or milliamperes (mA).

Ingående ström

The frequency (Hz) which is required to power the product.

Ingångsfrekvens

The specified electrical potential difference at which the device is designed to operate, measured in volts.

Uppmätt spänning

Egenskaper

The specific design and functional category of the protection device, such as a Miniature circuit breaker or a Residual-current device.

Typ av effektbrytare

The number of electrical poles or phases the device is designed to connect or switch (e.g., 1P, 3P).

Poltal

The IP code classifies and rates the degree of protection provided against the intrusion (including body parts such as hands and fingers), dust, accidental contact, and water by mechanical casings and electrical enclosures. It is published by the International Electrotechnical Commission (IEC). The digits (characteristic numerals) indicate conformity with the conditions summarized in the tables below. Where there is no protection rating with regard to one of the criteria, the digit is replaced with the letter X. an electrical socket rated IP22 is protected against insertion of fingers and will not be damaged or become unsafe during a specified test in which it is exposed to vertically or nearly vertically dripping water. Another example is the Sony Xperia Z Ultra, one of the first cellular phones to be IP-rated; it is rated at IP58 and marketed as "dust resistant" and can be "immersed in 1.5 meter of freshwater for up to 30 minutes".

Internationellt skydd (IP) kod

The level of protection provided against electric shock, categorized by the design of the insulation and grounding (e.g., Class II).

Skyddsklass

The colour e.g. red, blue, green, black, white.

Produktens färg

Miljökrav

The minimum and maximum temperatures at which the product can be safely operated.

Temperatur vid drift

Vikt & dimension

The measurement or extent of something from side to side.

Bredd

The distance from the front to the back of something.

Djup

Höjd

Produktens vikt utan förpackning (nettovikt). Om möjligt nettovikten är angett inklusive standardtillbehör och förråd.Obs, ibland anger tillverkaren en för kommersiell interpretation av produktvikten, där han lämnar ut vikten av tillbehör och/eller förråd.

Vikt

Förpackning

The number of individual units contained within a single sales package, measured in pc(s).

ABB 2CSR255163R1165, Dvärgbrytare, IP20, IP40

1 054 kr

1 054 kr

Produktbeskrivning

ABB 2CSR255163R1165, Dvärgbrytare, IP20, IP40

1 054 kr

1 054 kr

Strömtillförsel
Ingående ström	16 A
Ingångsfrekvens	50 - 60 hz
Uppmätt spänning	230 V

Egenskaper
Typ av effektbrytare	Dvärgbrytare
Poltal	1
Internationellt skydd (IP) kod	IP20, IP40
Skyddsklass	III
Produktens färg	Vit

Miljökrav
Temperatur vid drift	-25 - 55 ° C

Vikt & dimension
Bredd	17,6 mm
Djup	68 mm
Höjd	92 mm
Vikt	110 g

Förpackning
Antal per förpackning	1 styck
